About the product

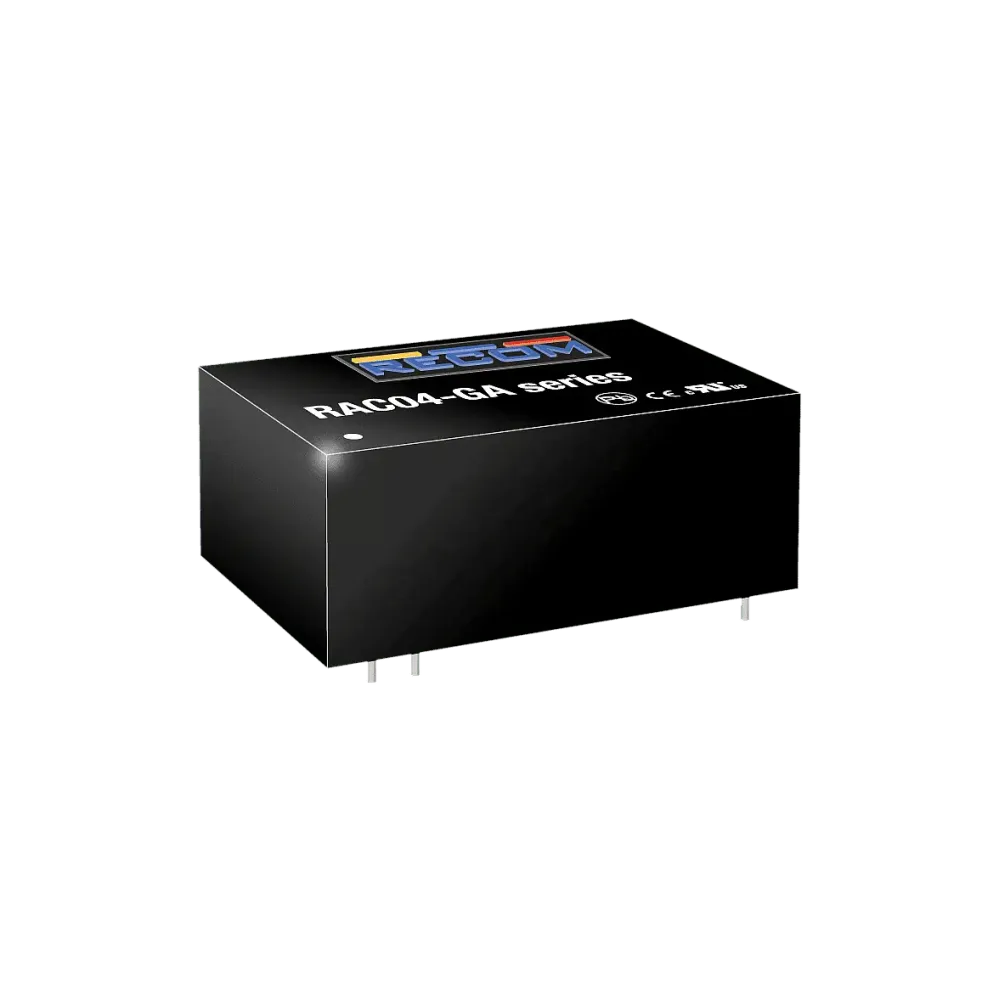

The RAC04-GA series are cost-effective AC/DC power supplies for PCB mounting. They have a universal AC input voltage range, regulated and short-circuit proof isolated DC outputs, low standby power consumption and an operating temperature range of -40°C to +85°C. The RAC04-GA have a built-in Class A / FCC Part 15 EMC filter, are certified to IEC/EN/UL60950-1 and EN60335 as well as IEC/EN/UL62368 and EN61558 safety standards and come with a three-year warranty.
Technical data
- Universal input 85-305VAC
- 4W PCB mounting housing
- <75mW power consumption without load
- Ultra-flat profile, compact size
- -40°C to +85°C Operating temperature
- Continuous SCP, OCP, OVP
- IEC/EN/UL60950 and EN60335-1 certified, EN55032 Class A
Product specifications
| Height | 15 mm |
| Output voltage (VDC) | 12 V |
| Power | 4 W |
| Manufacturer | Recom |
| Length | 37 mm |
| Input voltage range (VAC) | 85-305 V |
| Width | 24 mm |
| Application | Budget, ITE/AV |
| Certificates | EN60335-1 / household, EN62368-1 / ITE, UL62368-1 / ITE, IEC62368-1 / ITE |
