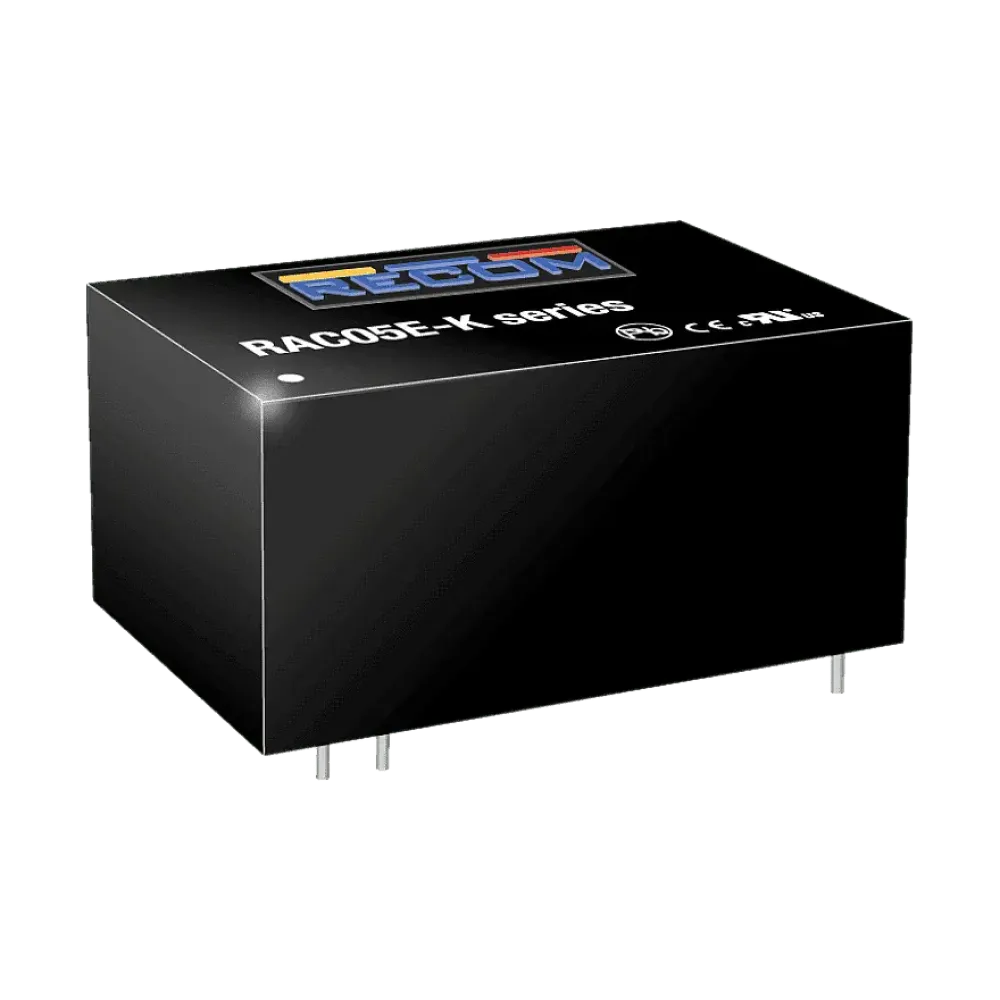

About the product
The low-cost primary-side regulated AC/DC converters of the RAC05E-K series are designed for general requirements in the ITE and office sector as well as for household applications or light industrial automation processes with a power consumption of less than 0.1W without load. The footprint is based on the current industry standard pinning for AC/DC modules from 3W with only slightly increased height. The AC/DC modules are UL and CB certified to IEC62368-1 and EN60335-1 standards for household applications. Certified for full load operation from -25°C to +55°C and worldwide input voltage ranges of nominal 100-240Vac, the modules provide moderately regulated outputs with permanent short-circuit and overvoltage protection. With just a few additional components, the limit values of EN55014 and EN55032 Class B for electromagnetic compatibility are complied with.
Technical data
- 100-240VAC input
- Controlled on the primary side
- Standard industry pinout
- Full load operation: -25 to 55°C
- Power consumption without load <100mW
Product specifications
| Output voltage (VDC) | 24 V |
| Input voltage range (VAC) | 90-264 V |
| Manufacturer | Recom |
| Height | 18 mm |
| Length | 37 mm |
| Power | 5 W |
| Width | 24 mm |
| Application | Budget, ITE/AV |
| Certificates | EN60335-1 / household, EN62368-1 / ITE, UL62368-1 / ITE, IEC62368-1 / ITE |
