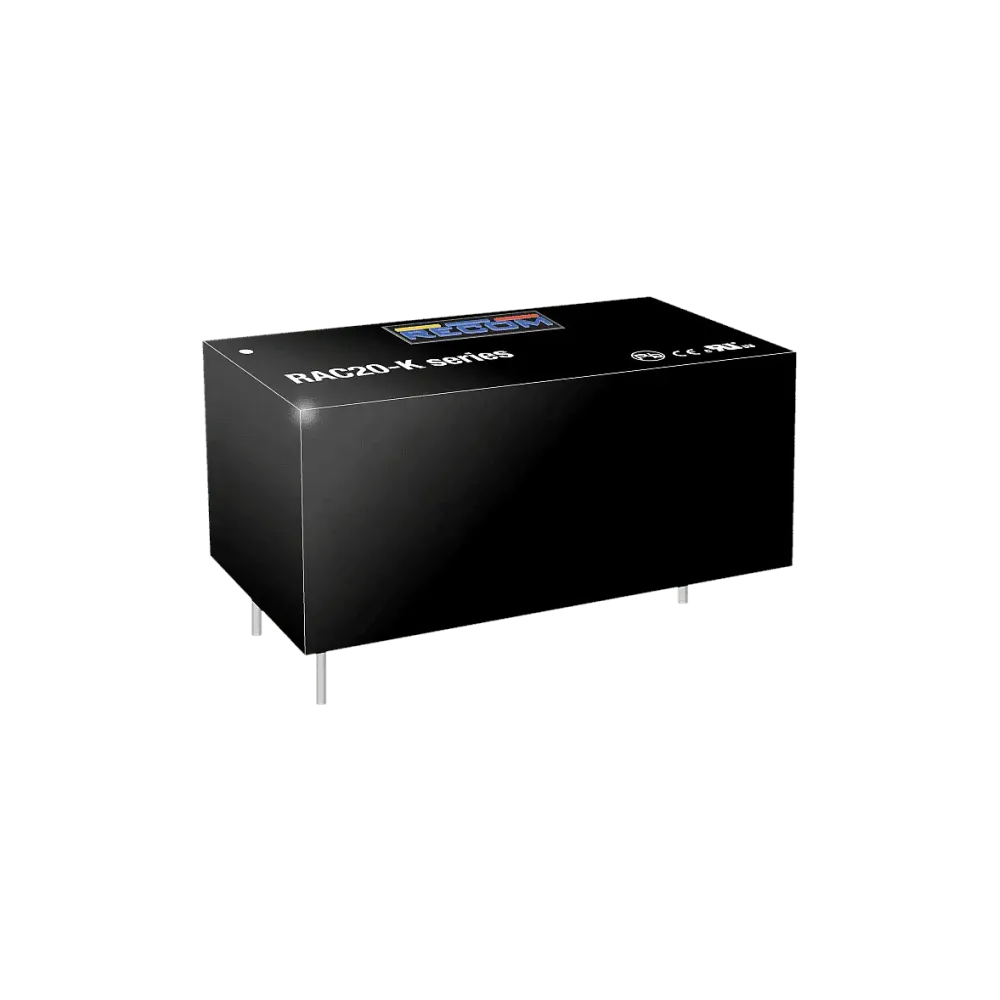

20WAC/DC power supply unit, PCB mounting, 24V/830mA

The RAC20-K series are highly efficient PCB-mounted power converter modules with extremely low energy losses, especially at low load, making them a benchmark for the always-on and standby operation typically associated with IoT and smart applications. The power supply units cover a global mains input range from 85VAC to 264VAC and have international safety certifications for industrial, AV, ITE and domestic standards. These AC/DC modules operate in a temperature range of -40°C to +85°C and offer fully protected single or dual outputs and Class B EMC compliance without the need for external components.

Technical data

• Wide input range 85-264VAC
• Optimized power supply unit for standby mode (ENER Lot 6)
• Ultra-high efficiency over the entire load range
• Operating temperature range: -40°C to +85°C
• Class II installations (without FG)
• EMC-compliant without external components
• Power consumption without load 40mW typ.
