About the product

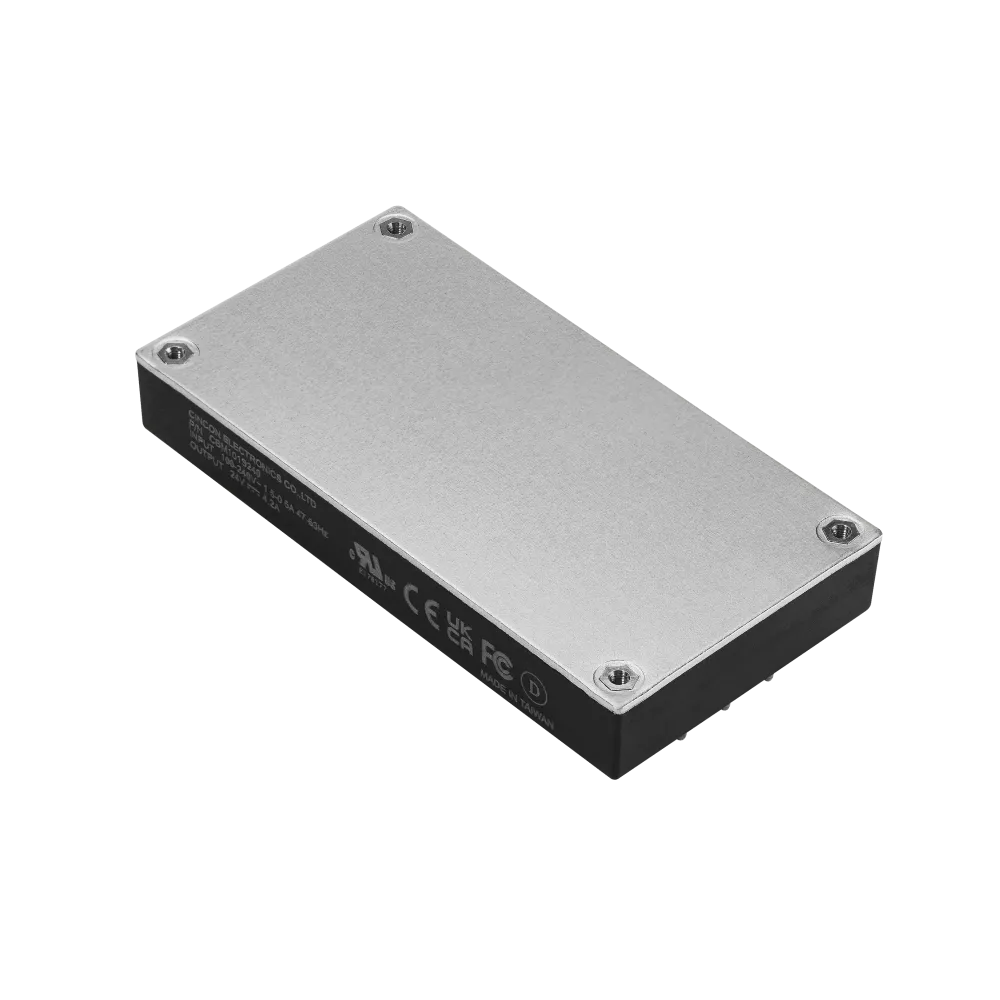

CBM101S120 series from Cincon is an AC-DC full-brick power supply that delivers 100W regulated power without additional cooling. The series has safety approvals in accordance with IEC/UL/EN 62368-1.
Technical data
- Input voltage 90 to 264Vac / 120 to 370Vdc
- Peak power of up to 120W for 5 seconds
- Power consumption at no load <0.5W
- Very wide operating temperature range from -40°C to +85°C
- 5000m operating altitude
- Full-brick housing with 17mm height
- MTBF >600k hours
- Safety approvals in accordance with IEC/UL/EN 62368-1
- EMC-compliant in accordance with EN55032 Class B and CISPR/FCC Class B
- Output overcurrent, output overvoltage, overtemperature and continuous short-circuit protection.
Product specifications
| Output voltage (VDC) | 12 V |
| Additional functions | Peak Power |
| Length | 116.8 mm |
| Application | ITE/AV |
| Height | 17 mm |
| Manufacturer | Cincon |
| Power | 100 W |
| Width | 61 mm |
| Input voltage range (VAC) | 90-264 V |
| Certificates | EN62368-1 / ITE, UL62368-1 / ITE, IEC62368-1 / ITE |
