Item ID: 45838

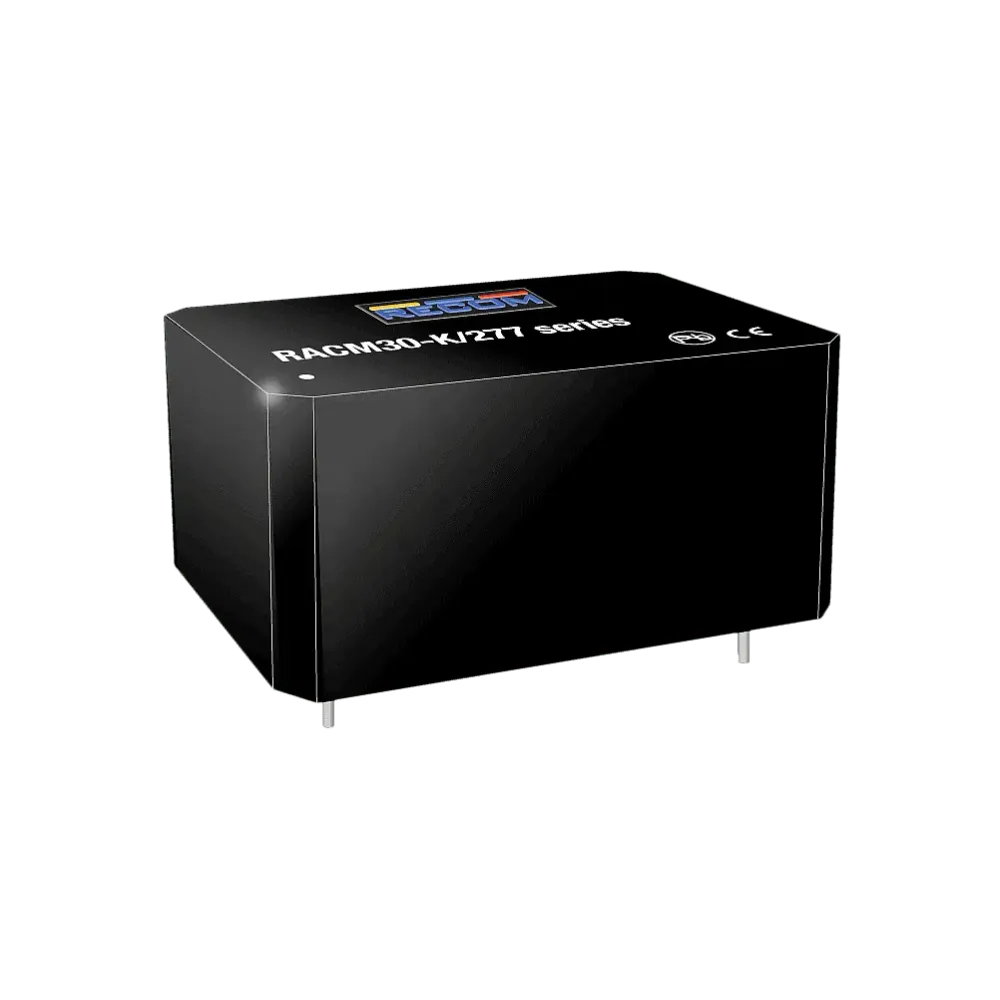

30W AC/DC power supply unit, PCB mounting, 5V/6A, ITE, Medical, Household
About the product
These silicone-free, encapsulated AC/DCs have an ultra-wide input range of 85-305VAC (120V to 430VDC) and are available with outputs of 5V, 12V, 15V, 24V +/-12V or +/-15V, fully protected against overvoltage, overcurrent and short circuits and classified as a "Limited Power Source".
The operating temperature range under full load is -40°C to +60°C with natural convection and up to +90°C with derating.
The products are designed to operate in OVC III and PD 3 environments up to 5000m altitude. Safety certifications include audio/video, IT, test equipment, industrial, domestic and MOPP medical, with 4kVAC/1 min isolation. The modules meet Class B EMC levels with a wide margin without external components with earthed outputs.
Variant for direct print mounting
Technical data
- Full load capacity: -40 to +60°C
- With derating up to 90°C
- OVC III up to 5000m and LPS
- Pinning according to industry standard [P12]
- Complies with EN55032 "B" in PELV configuration
- Medical, household and industrial standards
Product specifications
| Width | 40 mm |
| Manufacturer | Recom |
| Power | 30 W |
| Application | Household, ITE/AV, Medical |
| Output voltage (VDC) | 5 V |
| Input voltage range (VAC) | 85-305 V |
| Length | 52.5 mm |
| Height | 25.5 mm |
| Certificates | EN60335-1 / Household, EN60601-1 / Medical, EN61010-1 / Test and Measurement, EN62368-1 / ITE, UL60601-1 / Medical, OVC III |
