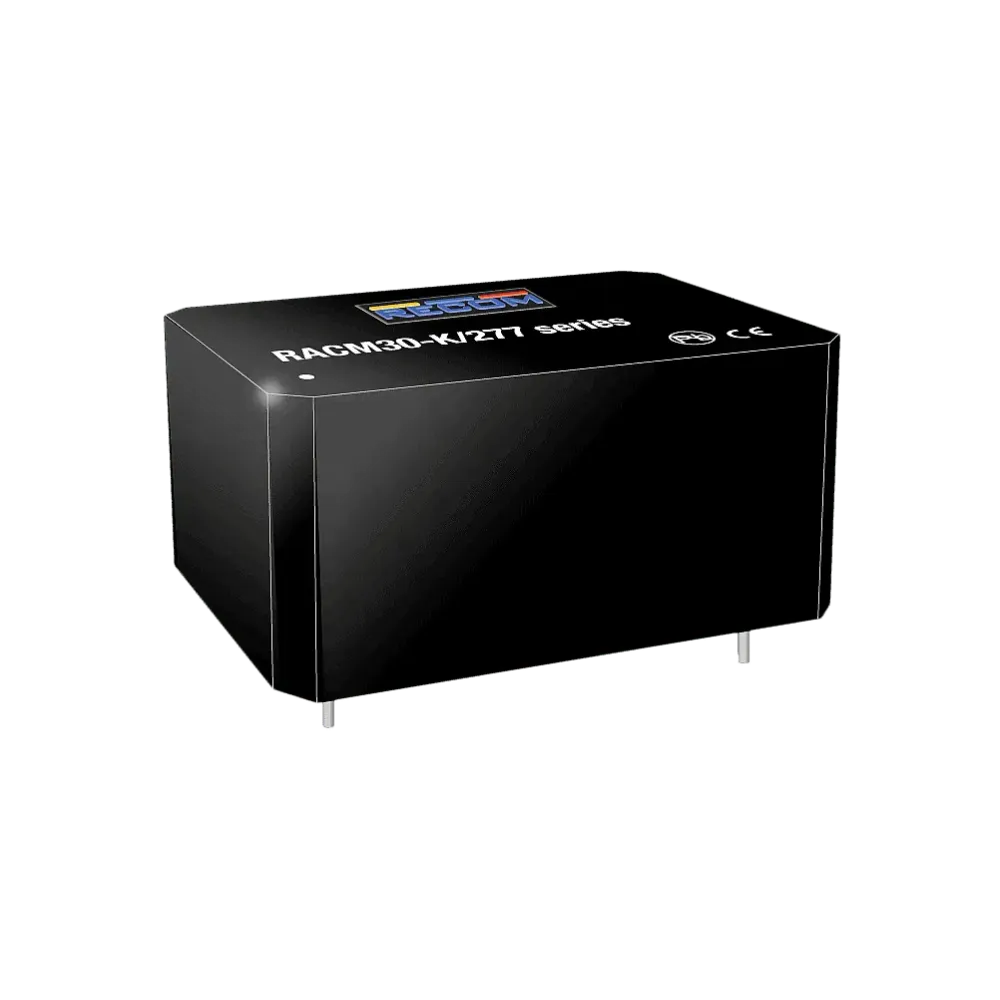

30W AC/DC power supply unit, PCB mounting, 24V/1.25A, ITE, Medical, Household

These silicone-free, encapsulated AC/DCs have an ultra-wide input range of 85-305VAC (120V to 430VDC) and are available with outputs of 5V, 12V, 15V, 24V +/-12V or +/-15V, fully protected against overvoltage, overcurrent and short circuits and classified as a "Limited Power Source".

The operating temperature range under full load is -40°C to +60°C with natural convection and up to +90°C with derating.

The products are designed to operate in OVC III and PD 3 environments up to 5000m altitude. Safety certifications include audio/video, IT, test equipment, industrial, domestic and MOPP medical, with 4kVAC/1 min isolation. The modules meet Class B EMC levels with a wide margin without external components with earthed outputs.

Variant for direct print mounting

Technical data

• Full load capacity: -40 to +60°C
• With derating up to 90°C
• OVC III up to 5000m and LPS
• Pinning according to industry standard [P12]
• Complies with EN55032 "B" in PELV configuration
• Medical, household and industrial standards
