About the product

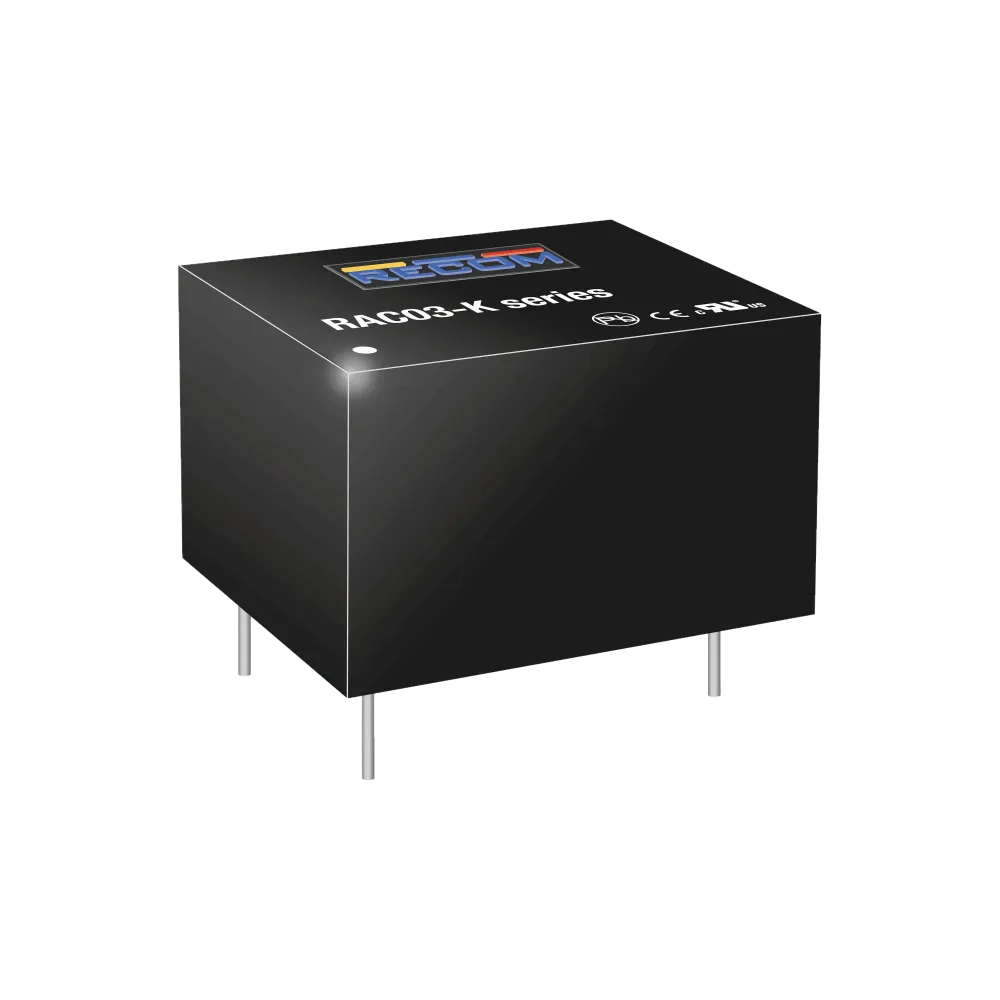

The RAC03-K series is the smallest 3-watt solution on the market. With a compact 1 inch² footprint, these modules deliver an output power of 3 watts in the temperature range from -40°C to 60°C and 2 watts in the temperature range up to 80°C. Despite its high power density and small footprint, the RAC03-K series is a complete solution that supports Ecodesign Lot 6 standby operation for global applications in automation, Industry 4.0, IoT, household and home automation. With an input voltage range of 85 to 264VAC and international safety certifications for industrial, domestic, ITE and household applications, they are among the most versatile power modules on the market. Their enhanced Class II installation rating and substantial margin for Class B emission compliance without external components make them the easiest to use power modules in the industry.
Technical data
- 1 inch² space requirement for the smallest 3 watt module
- Optimized standby mode (Ecodesign Lot 6)
- Power consumption without load <150mW
- Operating temperature range: -40°C to +80°C
- EMC compliance without external components
- Household IEC/EN60335
Product specifications
| Manufacturer | Recom |
| Output voltage (VDC) | 15 V |
| Power | 3 W |
| Input voltage range (VAC) | 85-264 V |
| Certificates | EN60335-1 / Household, EN62368-1 / ITE, UL62368-1 / ITE |
| Length | 28.5 mm |
| Width | 23.5 mm |
| Height | 17.9 mm |
| Application | Budget, ITE/AV |
