About the product

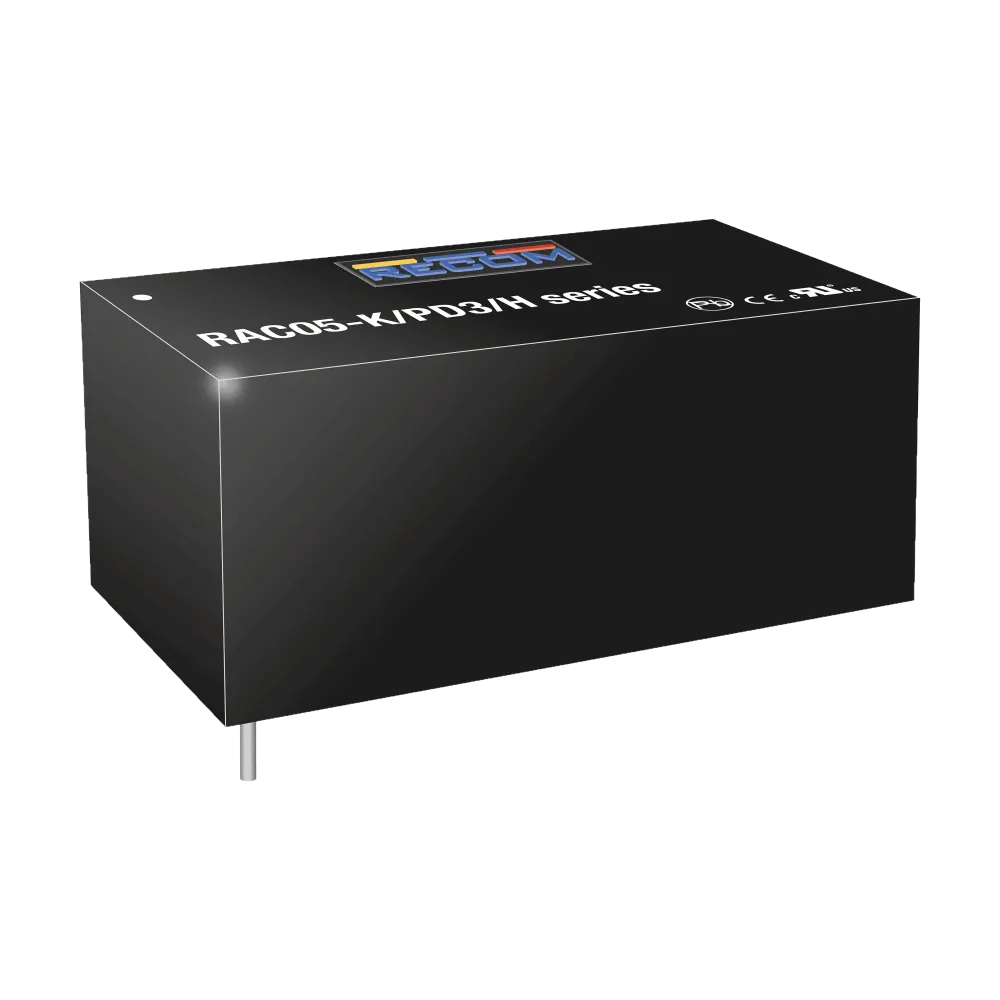

The 5 Watt AC/DC modules of the RAC05-K/PD3/H series are approved according to IEC61010 for PD3 and OVCIII by UL for 100-277VAC rated input lines. The modules support an operating temperature range of -40°C to +85°C in harsh environments with a possible extreme voltage rise up to 400Vac / 480Vac, permanently without damage. Fully protected outputs and EMC Class A and B compliance without external components for floating installations. All these features make it an ideal solution for integration in smart grid, renewable energy, smart metering and IoT applications.
Technical data
- OVC III and PD3 assessment
- Continuous maximum dielectric strength 528VAC
- UL-certified input 90-318VAC
- Operating temperature range: -40°C to +85°C
- Class II installations (without FG)
- EN55032 class "B" with floating outputs
- Power consumption without load <0,5 W
Product specifications
| Height | 23 mm |
| Manufacturer | Recom |
| Output voltage (VDC) | 5 V |
| Application | ITE/AV |
| Power | 5 W |
| Length | 52.5 mm |
| Width | 27.4 mm |
| Input voltage range (VAC) | 90-318 V |
| Certificates | EN61010-1 / Test and Measurement, EN62368-1 / ITE, PD3, OVC III |
