5W AC/DC power supply unit, PCB mounting, 24V/210mA

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

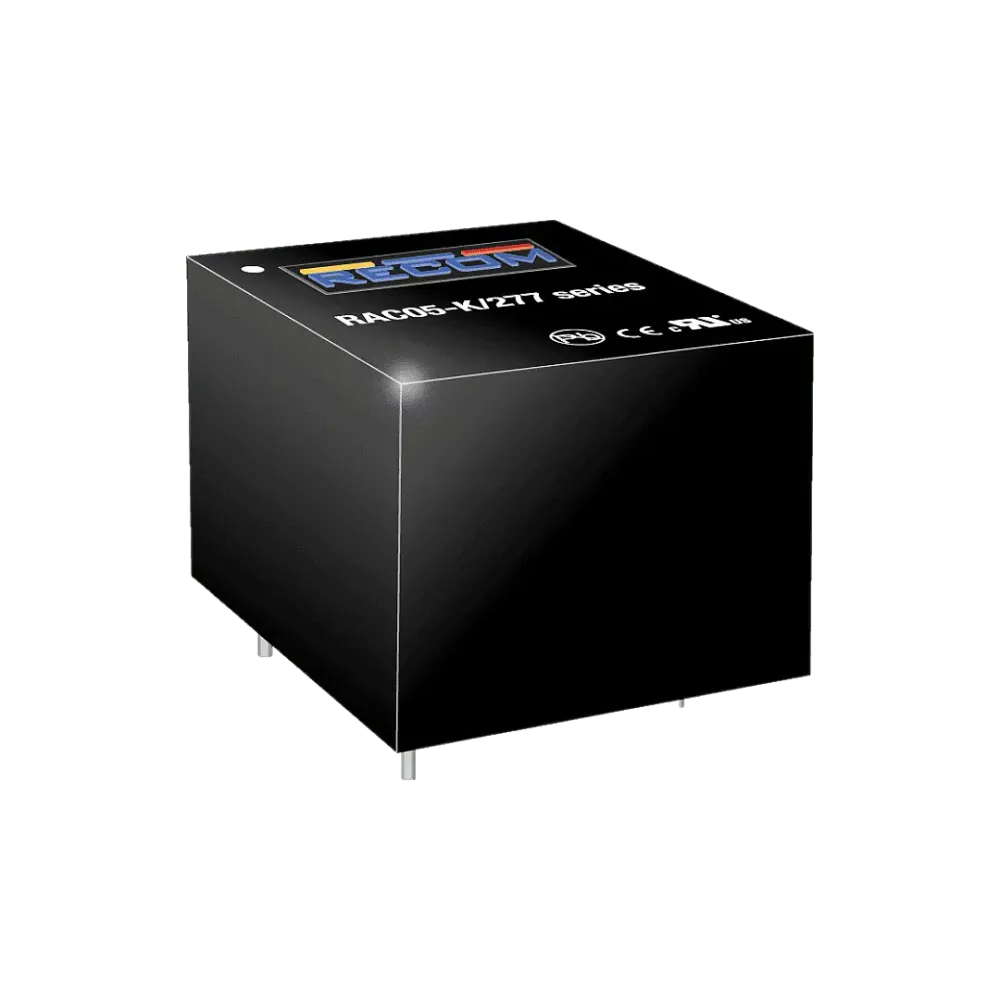

The RAC05-K/277 series are AC/DC power supply units with 5 watts for extended mains input conditions, designed for overvoltage category OVC III from 90VAC to 305VAC with a particularly wide operating temperature range of -40°C to +90°C. These modules are designed to power global applications in the fields of automation, Industry 4.0, IoT, household and smart buildings. For worldwide use, they have international safety certifications for industrial, household and ITE standards.

Technical data

Large input range 85-305VAC
Optimized standby mode (eco-design Lot 6)
Overvoltage category OVC III (2000m)
Operating temperature range: -40°C to +90°C
Overvoltage and overcurrent protection
EMC-compliant without external components
Encapsulated module for PCB mounting

Product specifications

Output voltage (VDC)	24 V
Manufacturer	Recom
Power	5 W
Input voltage range (VAC)	85-305 V
Length	31.7 mm
Width	26.7 mm
Height	21.8 mm
Application	Budget, ITE/AV
Certificates	EN60335-1 / Household, EN62368-1 / ITE, UL62368-1 / ITE, OVC III
