About the product

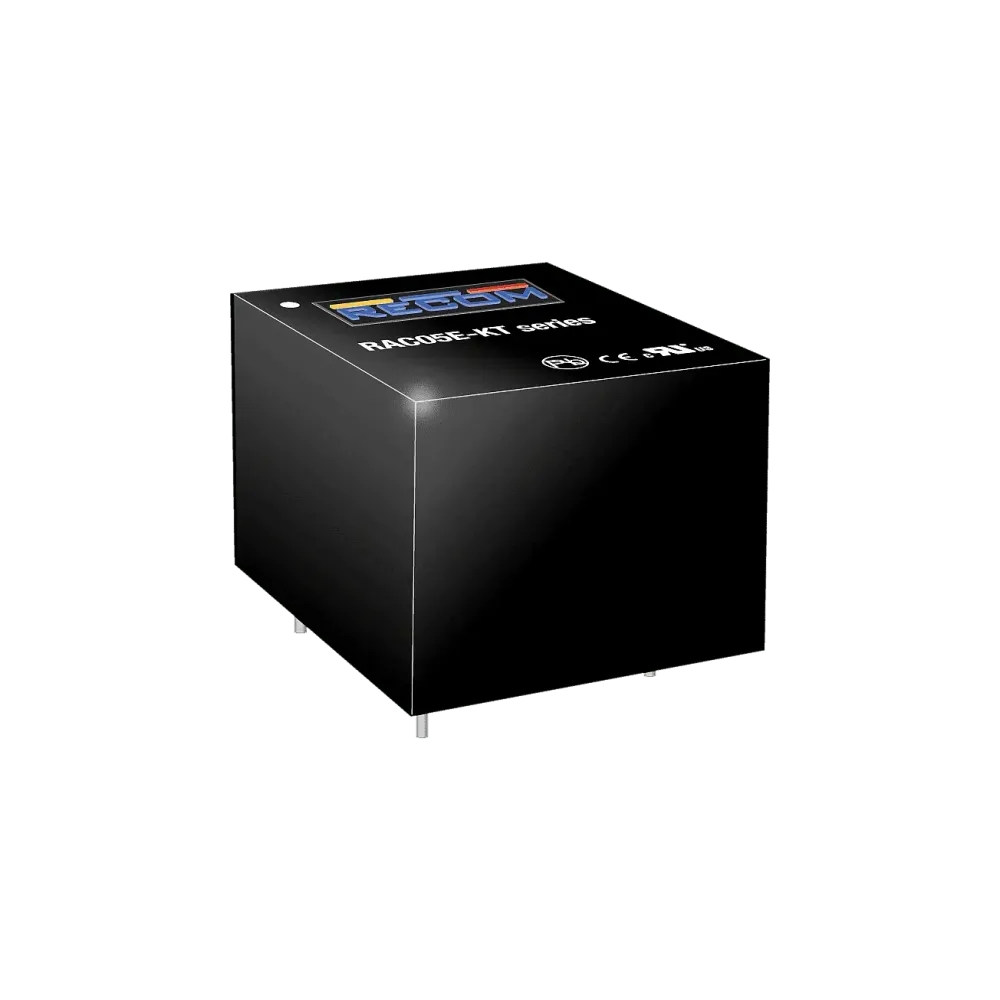

The RAC05E-KT series of low-cost primary regulated AC/DC converters are designed for general ITE and office requirements as well as for household applications or light industrial automation processes with a power consumption of less than 0.1 W in no-load operation. The footprint is based on the usual industry standard pinning for EI30 transformers and AC/DC modules such as the RAC05-K/277 series for increased power. The RAC05E-KT modules have the L and CB certifications of the IEC62368-1 and EN60335-1 standards for domestic applications. Certified for full load operation from -25°C to +55°C and worldwide input voltage ranges of nominal 100-240Vac, the modules provide moderately regulated outputs with permanent short-circuit and overvoltage protection. Without external components, the series complies with EN55014; EN55032 Class B and FCC15 for worldwide electromagnetic compatibility.
Technical data
- 100-240VAC input
- Primary side controlled
- Terminal assignment of EI-30 transformer
- Full load operation: -25 to 55°C
- Power consumption at no load <100mW
- Household and ITE-certified
Product specifications
| Input voltage range (VAC) | 90-264 V |
| Application | Budget, ITE/AV |
| Output voltage (VDC) | 4 V |
| Width | 24 mm |
| Certificates | EN60335-1 / Household, EN62368-1 / ITE, UL62368-1 / ITE |
| Power | 5 W |
| Length | 37 mm |
| Height | 18 mm |
| Manufacturer | Recom |
| Additional functions | EI30 pinout |
