About the product

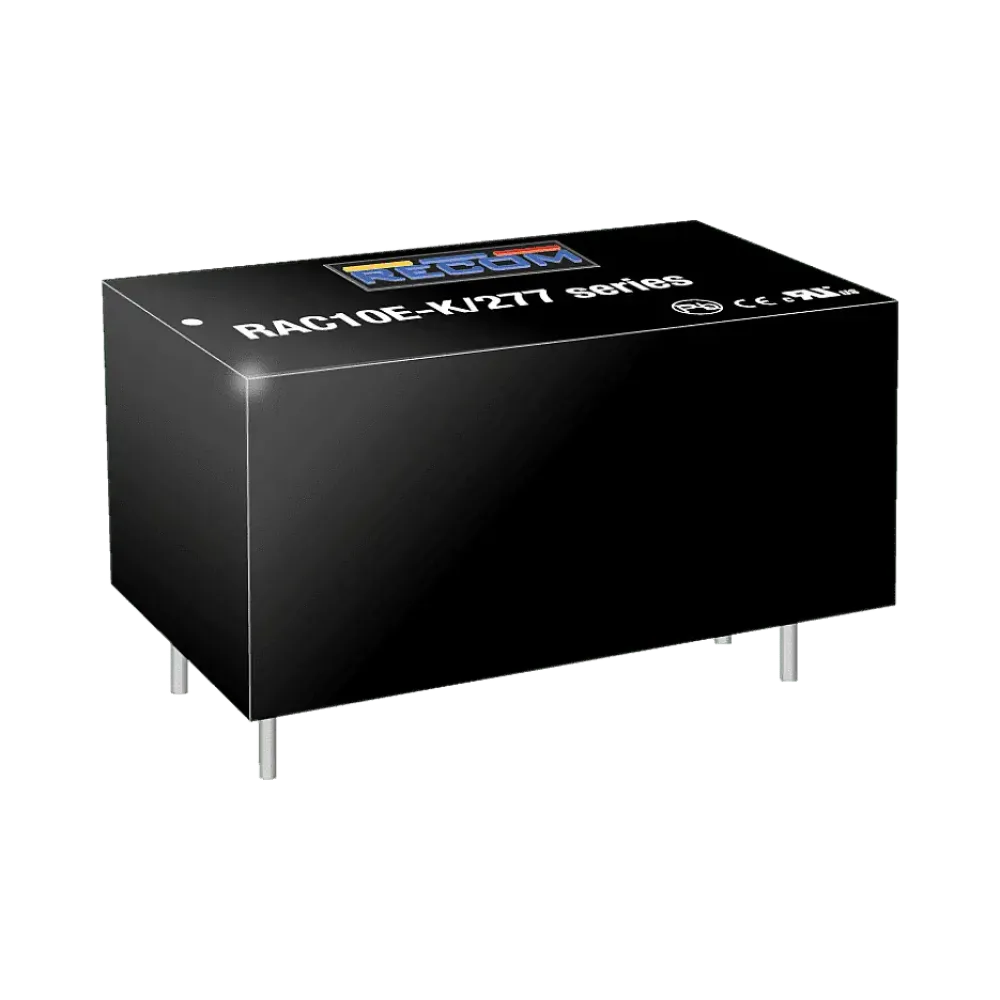

The RAC10-K/277 series are highly efficient power supply modules for PCB mounting with extremely low energy losses even at low loads. Designed for worldwide use, the AC/DC devices cover an extended mains input range from 85VAC to 305VAC and have international safety certifications for industrial and domestic standards. These AC/DC modules offer fully protected single or dual outputs and are EMC Class B compliant without the need for external components. With a peak power of 140 %, the RAC10-K/277 series is suitable for inductive, high starting currents or non-linear loads. With a full load temperature range of -40°C to +65°C, they are ideal for continuous and standby operation in process automation, IoT and smart building applications.
Technical data
- Large input range 85-305VAC
- Operating temperature range: -40°C to +80°C
- High efficiency over the entire load range
- No external components required
- Certification for the household IEC/EN60335
- Overvoltage category OVCIII (IEC62477-1)
- 140% peak load capacity
Product specifications
| Height | 23 mm |
| Additional functions | Peak Power |
| Application | Budget, ITE/AV |
| Width | 27.4 mm |
| Length | 52.5 mm |
| Input voltage range (VAC) | 85-305 V |
| Output voltage (VDC) | 3.3 V |
| Power | 10 W |
| Manufacturer | Recom |
| Certificates | EN60335-1 / Household, EN62368-1 / ITE, UL62368-1 / ITE, OVC III |
