About the product

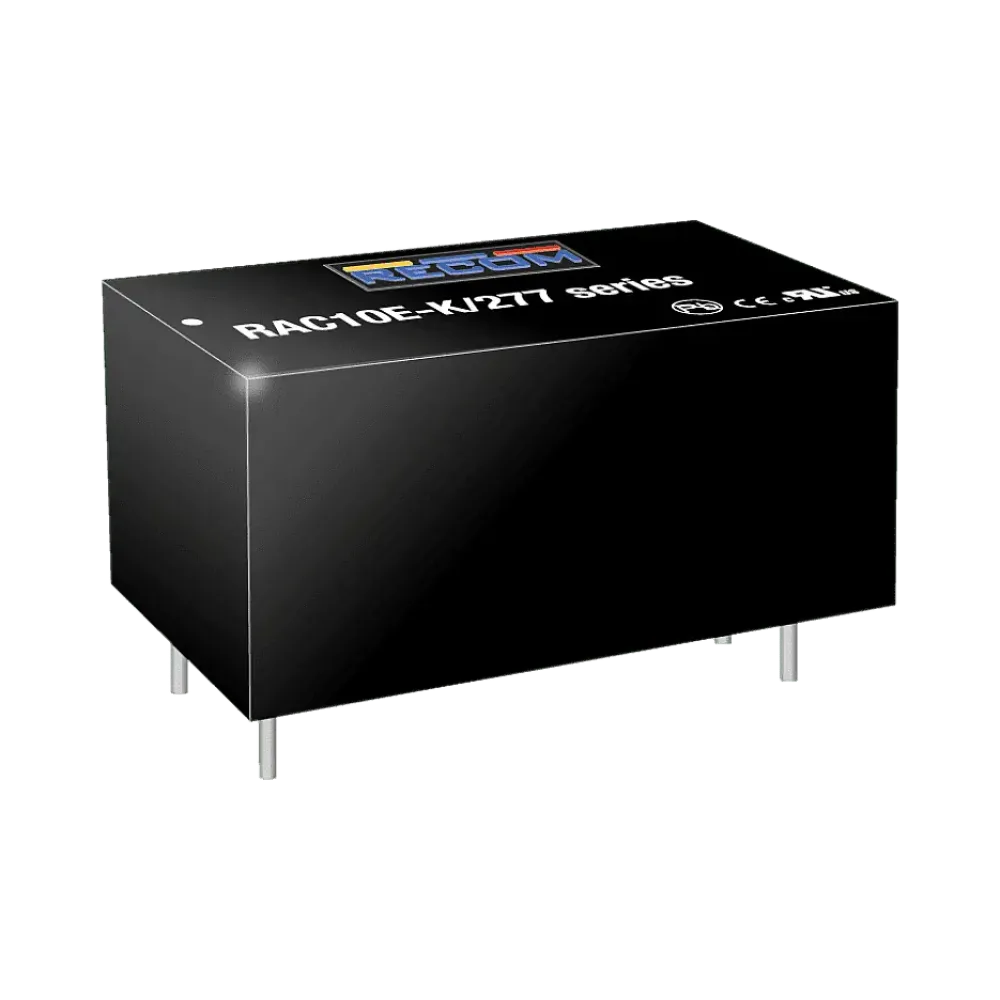

The cost-effective RAC10E-K series are extra compact 1.8 "x1" encapsulated AC/DC modules for PCB mounting with a wide input range of 85 to 305Vac and have international safety certifications for industrial, AV, ITE and domestic standards. Certified for OVC III overvoltage category environments, these power supply modules operate in a temperature range of -40°C to +90°C with an operating altitude of up to 5000m and offer fully protected individual outputs and EMC Class B compliance without external components.
Technical data
- Extra large input range 100/115/240/277VAC
- Overvoltage category OVC III (2000m)
- Operating altitude up to 5000m (OVC II)
- Operating temperature: -40°C to +90°C
- EMC-compliant without external components
- Power consumption without load <100mW max.
Product specifications
| Height | 21.5 mm |
| Manufacturer | Recom |
| Output voltage (VDC) | 15 V |
| Power | 10 W |
| Application | ITE/AV |
| Length | 45.7 mm |
| Width | 25.4 mm |
| Input voltage range (VAC) | 85-305 V |
| Certificates | EN62368-1 / ITE, UL62368-1 / ITE, OVC III |
