About the product

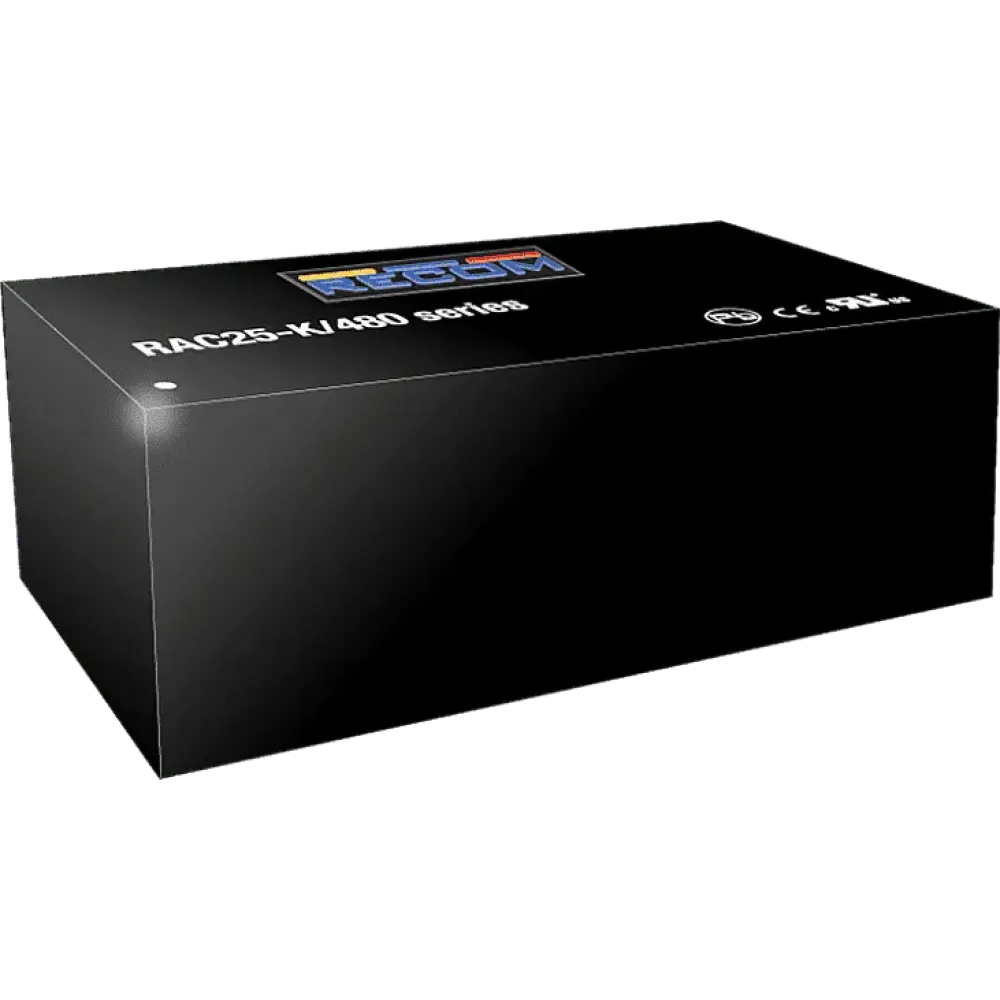

The RAC25-K/480 series AC/DC modules with ultra-wide input range of 100-480 VAC are specifically designed for harsh industrial conditions of OVC III overvoltage category and PD3 pollution degree in both single-phase and Class II phase-to-phase power connections. These power supplies can operate in a wide temperature range from -40° to 90°C (up to 70°C without derating), provide LPS-limited outputs with continuous overcurrent protection, overvoltage withstand to level 3 and EMC compliance to emission class B in floating configurations. The silicone-free, encapsulated modules are extremely compact and fit on PCBs where space is limited. Global safety certifications allow fast time-to-market for integration into applications for markets such as smart grid, smart metering, renewable energy, sensors and actuators or IoT applications.
Technical data
- OVC III and PD3 up to 5000m altitude
- 85-528VAC Input range
- Operating temperature -40°C to +90°C:
- LPS limited power source
- EN55032 class "B"; potential-free outputs
- Power consumption without load <0,3W
Product specifications
| Power | 25 W |
| Output voltage (VDC) | 12 V |
| Manufacturer | Recom |
| Length | 83.23 mm |
| Width | 46.43 mm |
| Height | 30.4 mm |
| Input voltage range (VAC) | 85-528 V |
| Application | Budget, ITE/AV |
| Certificates | EN61010-1 / Test and Measurement, EN62368-1 / ITE, UL62368-1 / ITE, PD3, OVC III |
