About the product

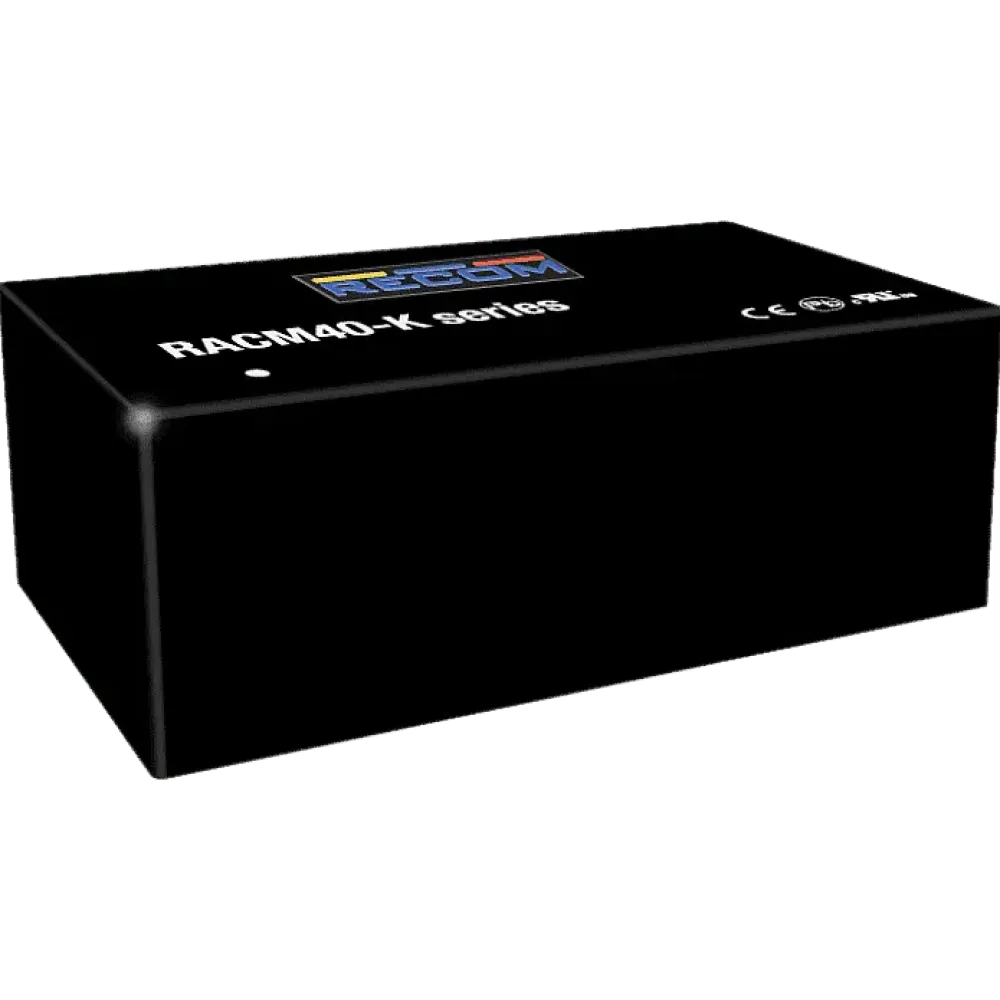

The ultra-compact, versatile RACM40-K and RACM40-K/OF series AC/DC converters for industrial, residential and medical applications deliver 40 watts of output power at temperatures from -40°C to +65°C with natural air convection and up to +85°C with derating or forced air cooling. With a clear focus on extended thermal performance for space-constrained systems, these encapsulated 1.8 "x3.2" modules are designed to achieve the highest overall efficiencies across the entire output load range of universal AC inputs. The RACM40-K and RACM40-K/OF are certified to ANSI/AAMI/IEC 60601-1 for medical safety and EN 60601-1-2 for medical EMC and offer 4kVac/1 min isolation, 2MOPP and meet B and BF requirements. It is additionally certified to IEC/EN 62368-1 (CB report) and IEC61558-1/-2-16 for industrial applications and IEC/EN 60335-1 for household appliances. The robust built-in class B EMC filter offers sufficient scope to enable class II or I PELV installations with earthed output.
The mechanically robust design of the fully encapsulated RACM40-K module with 1.6 mm pins and additional threaded inserts gives the series increased stability against shocks and vibrations.
Technical data
- 1.8 "x3.2", encapsulated modules
- 40W power from -40°C up to +65°C ambient temperature
- Operating temperature up to +85°C with derating
- 4 kVac/1min reinforced insulation
- 2MOPP medically certified, B and BF compliant
- 5000m (medical/ITE) Operating altitude
- Integrated class B EMC filter
Product specifications
| Power | 40 W |
| Output voltage (VDC) | 48 V |
| Manufacturer | Recom |
| Input voltage range (VAC) | 80-264 V |
| Application | Household, ITE/AV, Medical |
| Length | 78.3 mm |
| Width | 40.6 mm |
| Height | 29.1 mm |
| Certificates | EN60335-1 / Household, EN60601-1 / Medical, EN61010-1 / Test and Measurement, EN62368-1 / ITE, UL60601-1 / Medical, OVC III |
