About the product

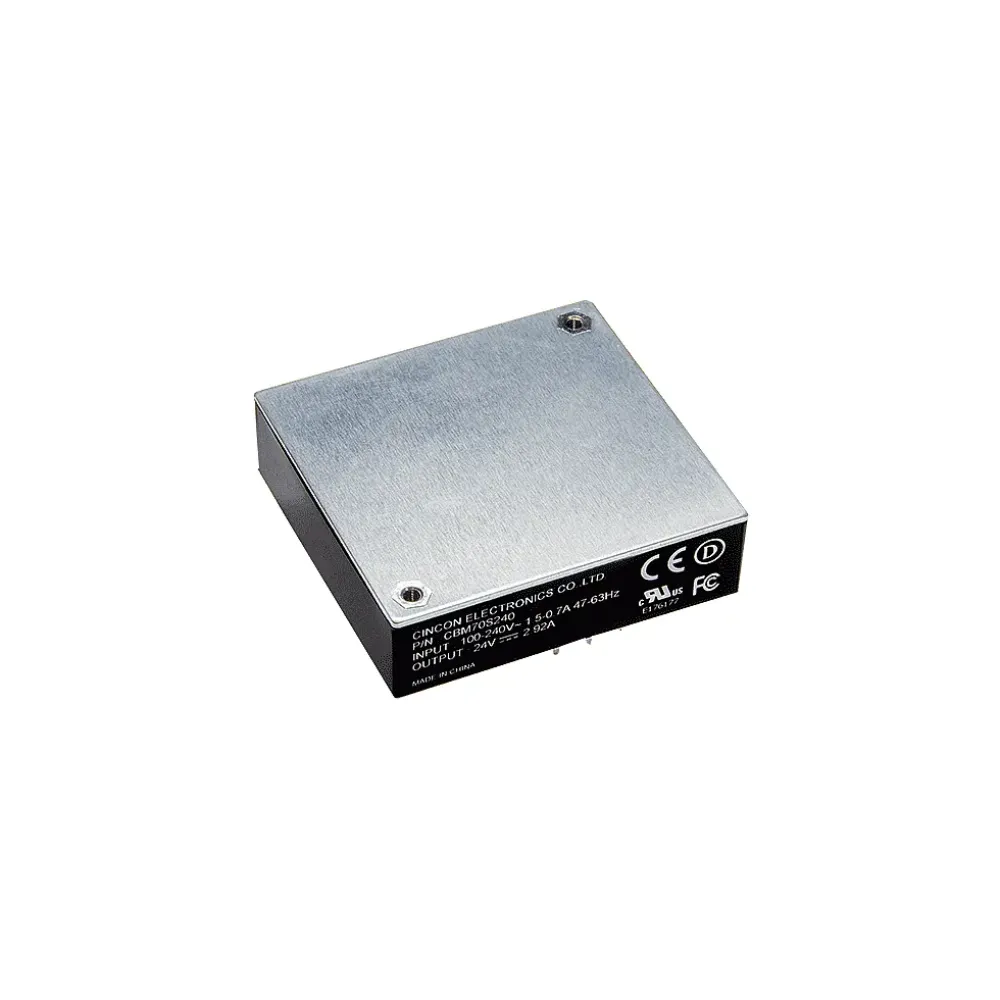

The CBM70S series from Cincon is a new, innovative high-density AC/DC power module with 70W output power. The power supply is housed in a standard half-brick with the dimensions 61.0×57.9×17.0mm. The AC/DC power supply module has safety approvals according to IEC/UL/EN 62368-1 and fulfills the EMC requirements according to EN55032 Level B for conducted and radiated emissions as well as interference immunity according to EN61000-4 without external components.
Product specifications
| Output voltage (VDC) | 12 V |
| Input voltage range (VAC) | 90-264 V |
| Power | 70 W |
| Manufacturer | Cincon |
| Height | 17 mm |
| Application | ITE/AV |
| Certificates | EN62368-1 / ITE, UL62368-1 / ITE |
| Length | 61 mm |
| Width | 57.9 mm |
Data sheets
