About the product

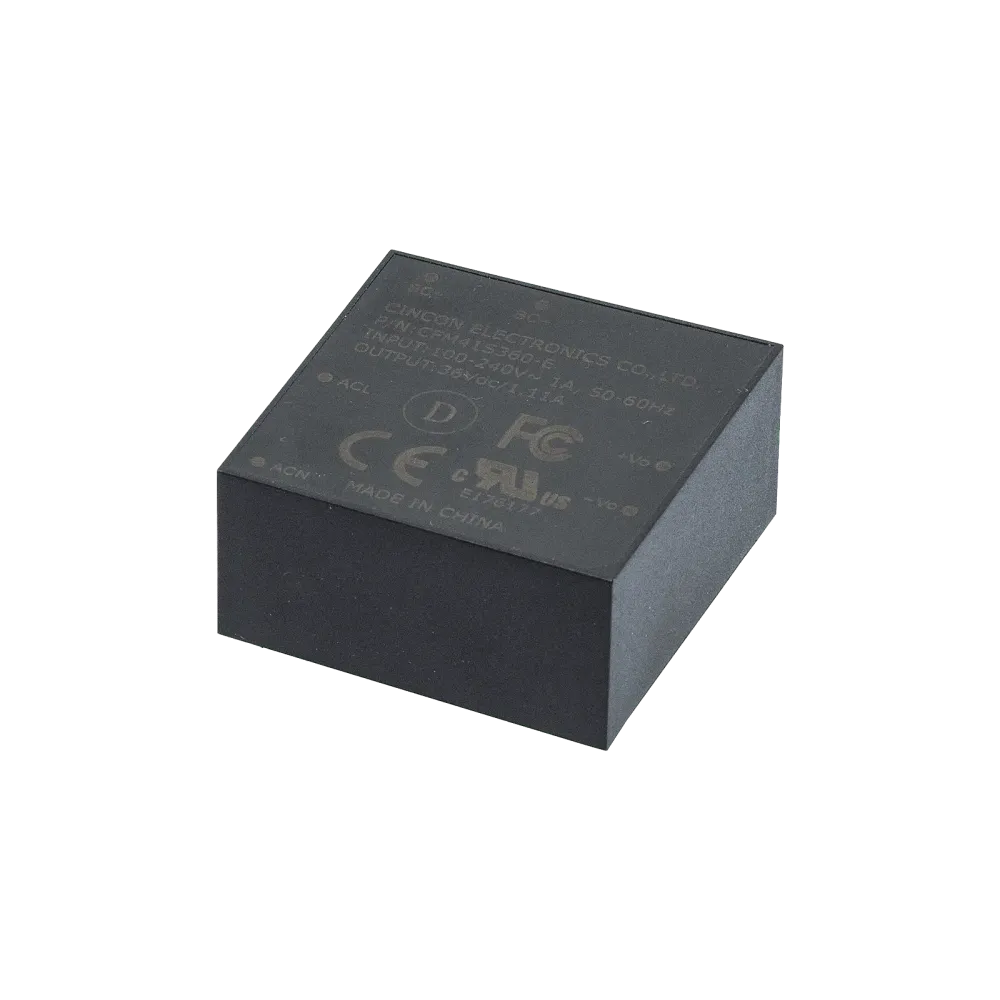

CFM41S family is a Class II AC/DC power supply with high power density and compact dimensions. Version for direct soldering on the PCB.
Technical data
- Input voltage 90 to 264Vac
- No load power consumption 75mW
- Class II
- High efficiency 83%
- Complies with EN55032 Class B and CISPR/FCC Class B
- Complies with IEC62368-1, UL62368-1 and EN62368-1
- Compliance with EN61558 (EN60335)
- Protective circuits: Permanent short circuit and overvoltage
Product specifications
| Output voltage (VDC) | 24 V |
| Application | Budget, ITE/AV |
| Height | 26.5 mm |
| Width | 54.4 mm |
| Length | 54.4 mm |
| Certificates | EN62368-1 / ITE, UL62368-1 / ITE |
| Manufacturer | Cincon |
| Input voltage range (VAC) | 90-264 V |
| Power | 40 W |
| Additional functions | Peak Power |
