About the product

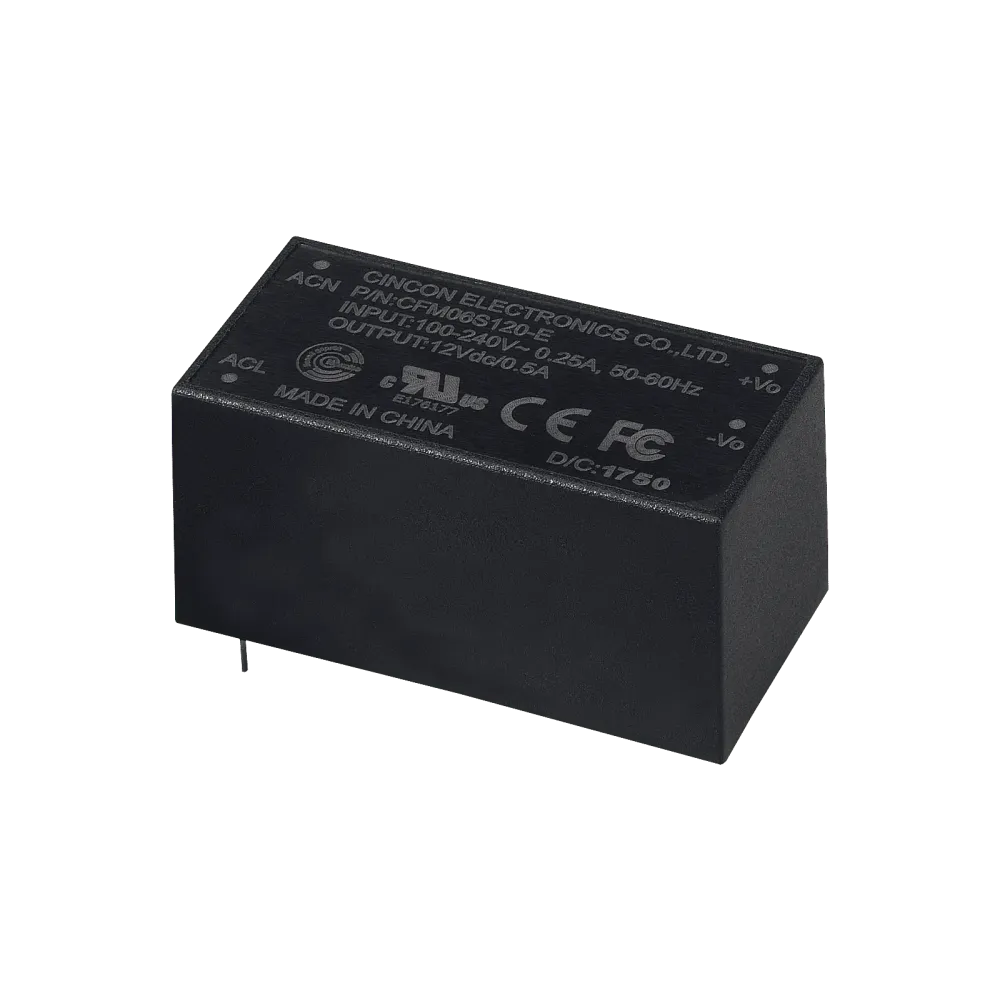

CFM06S family is Cincon's 6Watt Class II AC/DC power supply with high power density and compact dimensions. Version for direct soldering on the PCB.
Technical data
- Input voltage 90 to 264Vac
- No load power consumption 75mW
- Class II
- High efficiency 83%
- Complies with EN55032 Class B and CISPR/FCC Class B
- Complies with IEC62368-1, UL62368-1 and EN62368-1
- Compliance with EN61558 (EN60335)
- Protective circuits: Permanent short circuit and overvoltage
Product specifications
| Height | 20 mm |
| Input voltage range (VAC) | 90-264 V |
| Output voltage (VDC) | 15 V |
| Manufacturer | Cincon |
| Power | 6 W |
| Certificates | EN62368-1 / ITE, UL62368-1 / ITE |
| Length | 41.1 mm |
| Width | 21 mm |
| Application | Budget, ITE/AV |
Data sheets
