About the product

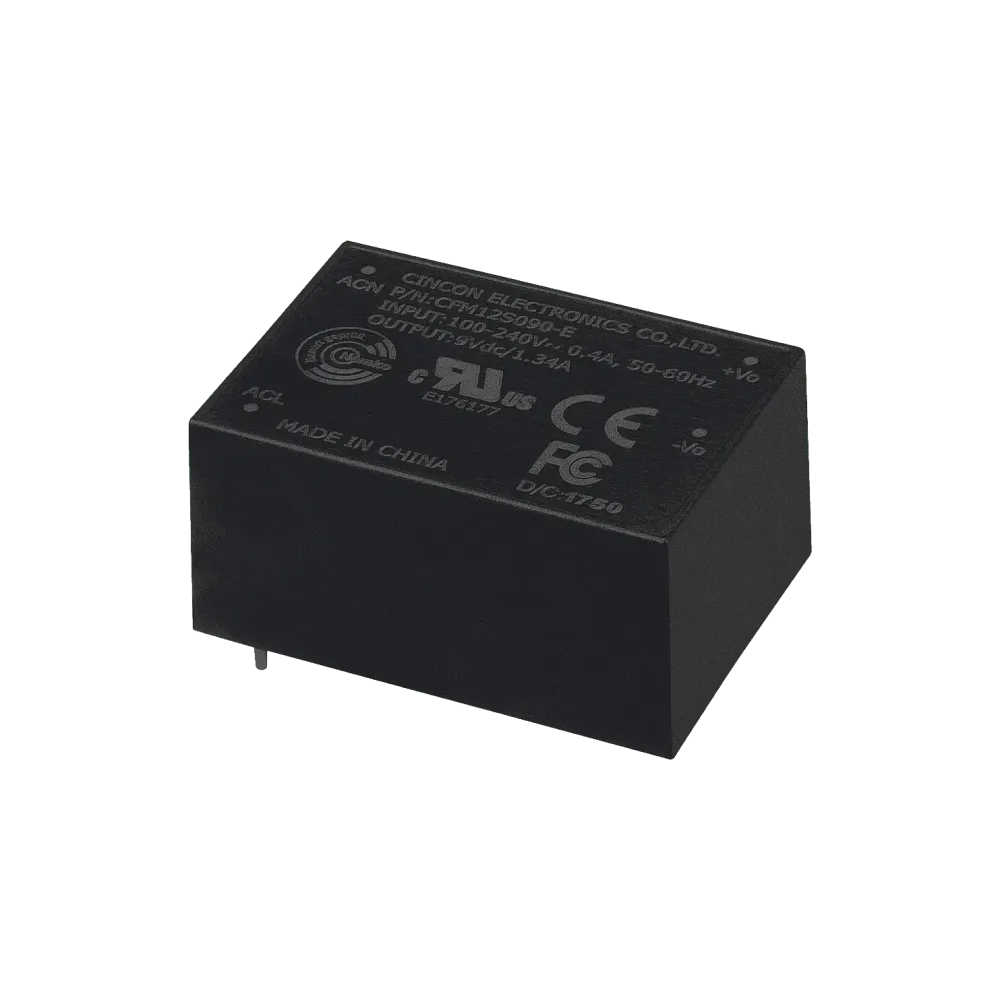

CFM12S family is a Class II AC/DC power supply with high power density and compact dimensions. Version for direct soldering on the PCB.
Technical data
- Input voltage range 90 to 264Vac
- No load power consumption 75mW
- Class II
- High efficiency 87%
- Complies with EN55032 Class B and CISPR/FCC Class B
- Complies with IEC62368-1, UL62368-1 and EN62368-1
- Compliance with EN60335-1
- Protective circuits: Permanent short circuit and overvoltage
Product specifications
| Power | 12 W |
| Input voltage range (VAC) | 90-264 V |
| Manufacturer | Cincon |
| Output voltage (VDC) | 5 V |
| Width | 25.4 mm |
| Certificates | EN60335-1 / Household, EN62368-1 / ITE, UL62368-1 / ITE |
| Length | 38.1 mm |
| Height | 19.4 mm |
| Application | Budget, ITE/AV |
