About the product

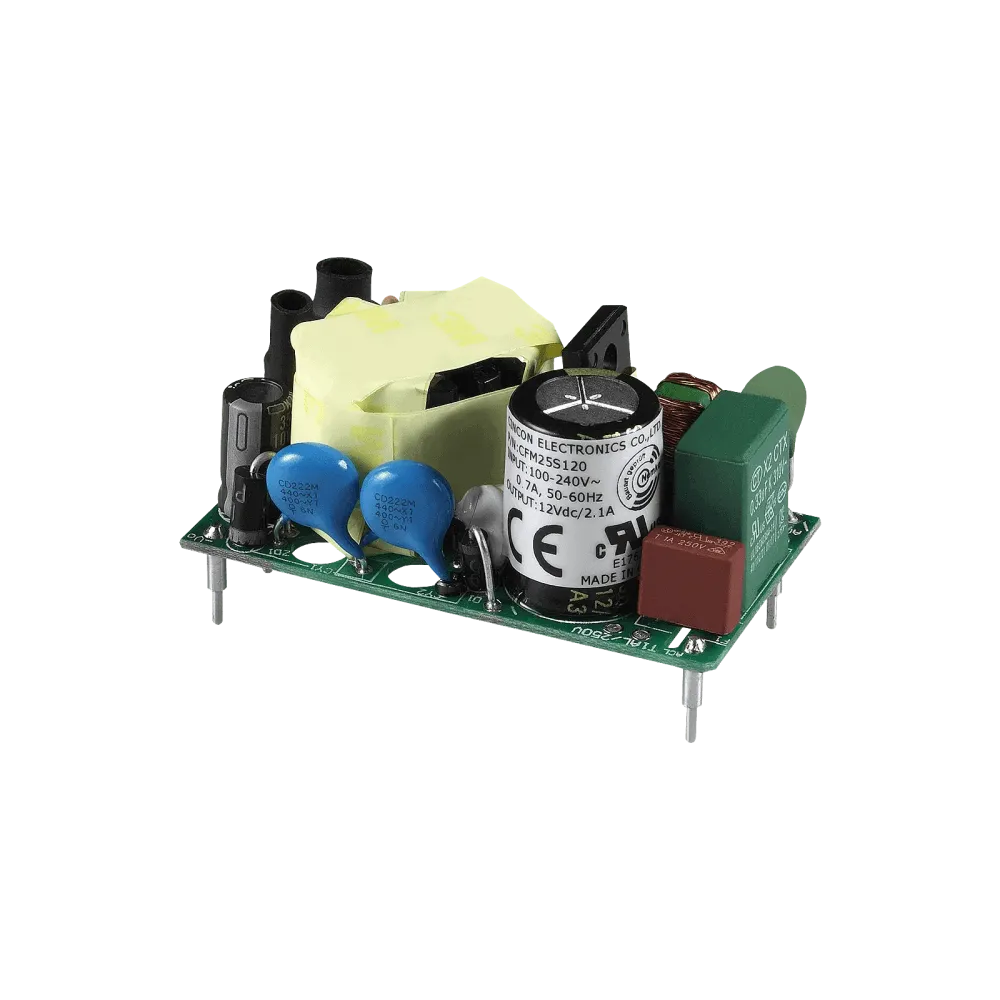

CFM25S family is a Class II AC/DC power supply with high power density and compact dimensions. Version for direct soldering on the PCB.
Technical data
- Input voltage range 90 to 264Vac
- Efficiency 87%
- No load power consumption <0.1W
- Protective circuit: short circuit and overvoltage
- Complies with EN55032 Class B and CIRSS/FCC Class B
- Complies with IEC62368-1, UL62368-1 and IEC/EN60335-1, IEC61558-1
- Peak Power (2x Rated Power)
- Class II
- Dimensions 50.8 x 27.94 x 24.9mm (L x W x H)
Product specifications
| Input voltage range (VAC) | 90-264 V |
| Manufacturer | Cincon |
| Power | 20 W |
| Width | 28 mm |
| Output voltage (VDC) | 5 V |
| Certificates | EN60335-1 / Household, EN62368-1 / ITE, UL62368-1 / ITE |
| Length | 50.8 mm |
| Height | 24.9 mm |
| Application | Budget, ITE/AV |
