About the product

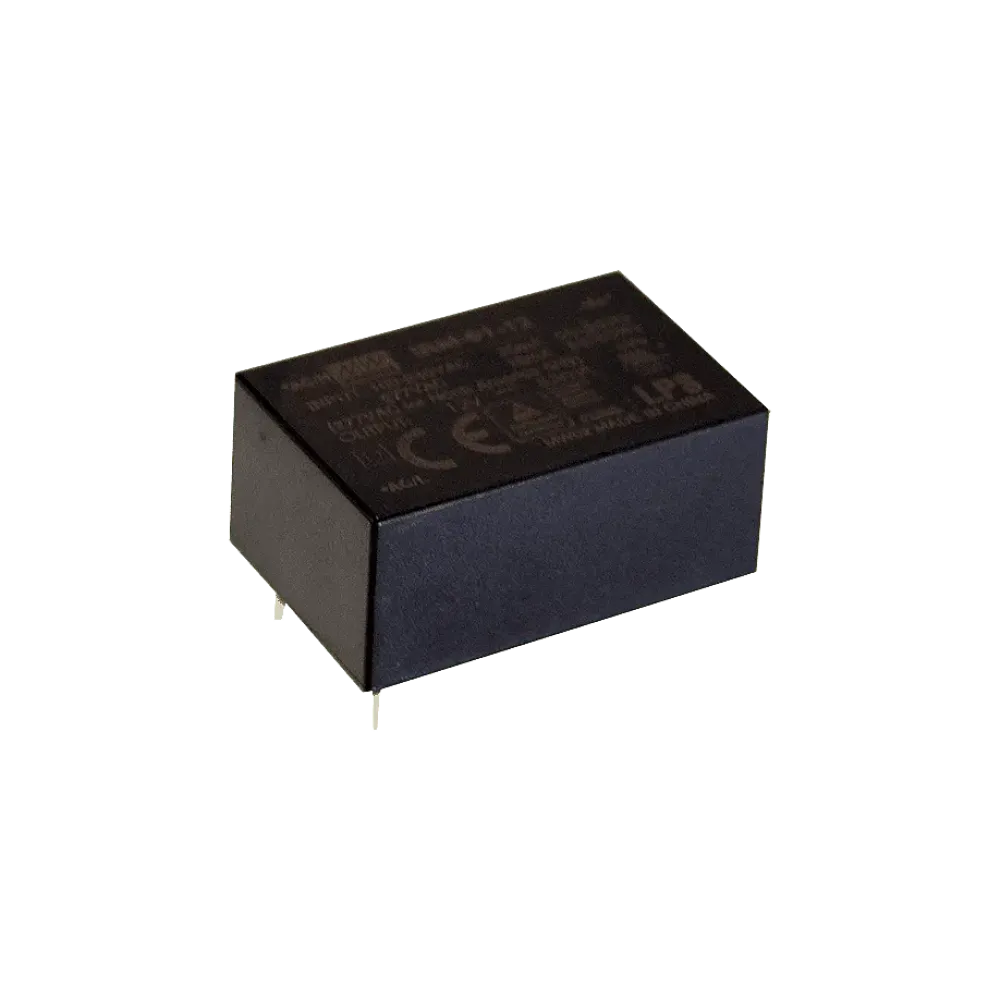

IRM-01-5 is a Class II AC/DC power supply for direct soldering on the PCB.
Technical data
- Input voltage 85 to 305Vac
- No load power consumption <0.075W
- Very compact design
- Protection class II Device without earth connection
- Short-circuit, overload and overvoltage protection
- Dimensions 33.7 x 22.2 x 15mm (L x W x H)
Product specifications
| Height | 15 mm |
| Manufacturer | MEAN WELL |
| Output voltage (VDC) | 5 V |
| Application | ITE/AV |
| Power | 1 W |
| Length | 33.7 mm |
| Width | 22.2 mm |
| Input voltage range (VAC) | 85-305 V |
| Certificates | EN62368-1 / ITE, UL62368-1 / ITE |
