About the product

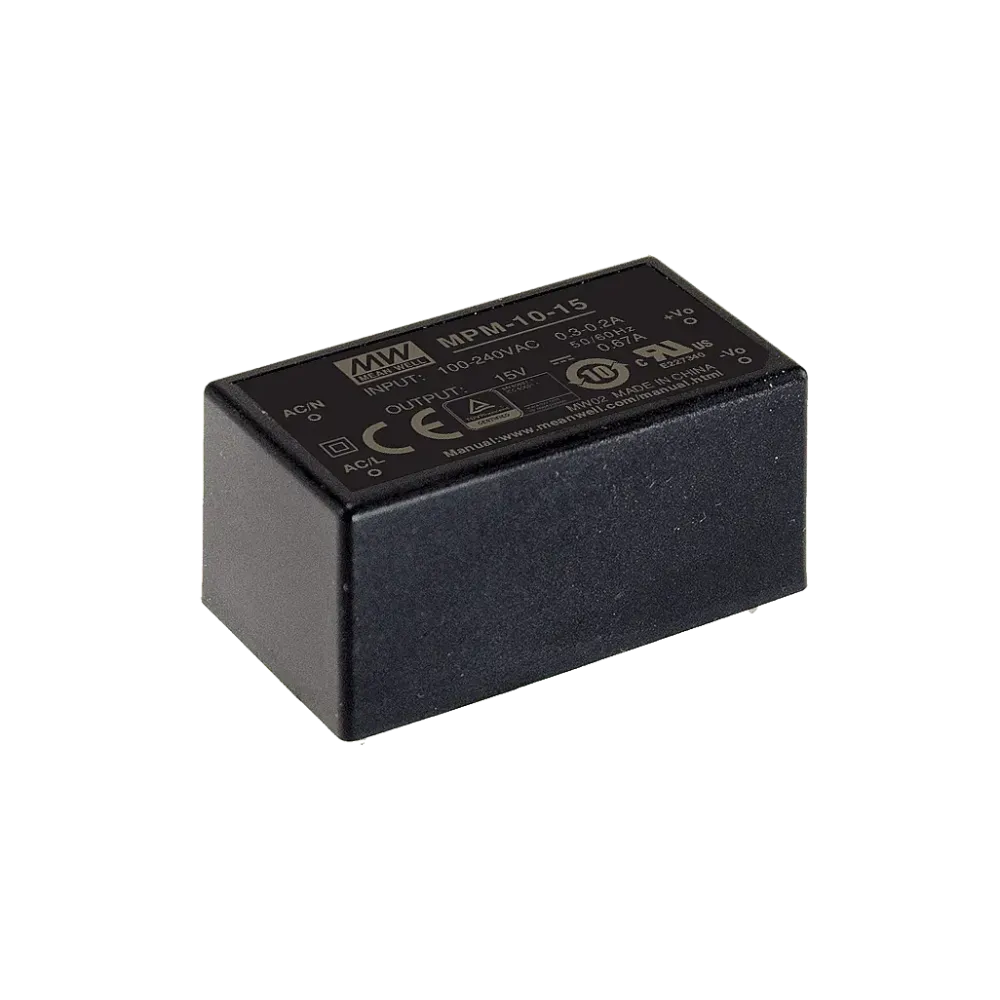

MPM-10-3.3 is an ultra-compact AC-DC power supply unit with medical approval for PCB mounting in an encapsulated housing.
Technical data
- Input voltage 80 to 264Vac
- No load power consumption 0.075W
- Very low leakage current (80µA)
- Protection class II Device without earth connection
- Wide temperature range from -40 to +85°C
- 2x MOPP (insulation: primary to secondary)
- Suitable for BF applications
- Operating altitude up to 5000 meters
- Short-circuit, overload, overvoltage and overtemperature protection
- Medical approval according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
- The design complies with household approval EN60335-1
- Dimensions 45.7 x 25.4 x 21.5mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Height | 21.5 mm |
| Input voltage range (VAC) | 80-264 V |
| Power | 8 W |
| Output voltage (VDC) | 3.3 V |
| Application | Household, Medical |
| Length | 45.7 mm |
| Width | 25.4 mm |
| Certificates | EN60601-1 / Medical, UL60601-1 / Medical |
