About the product

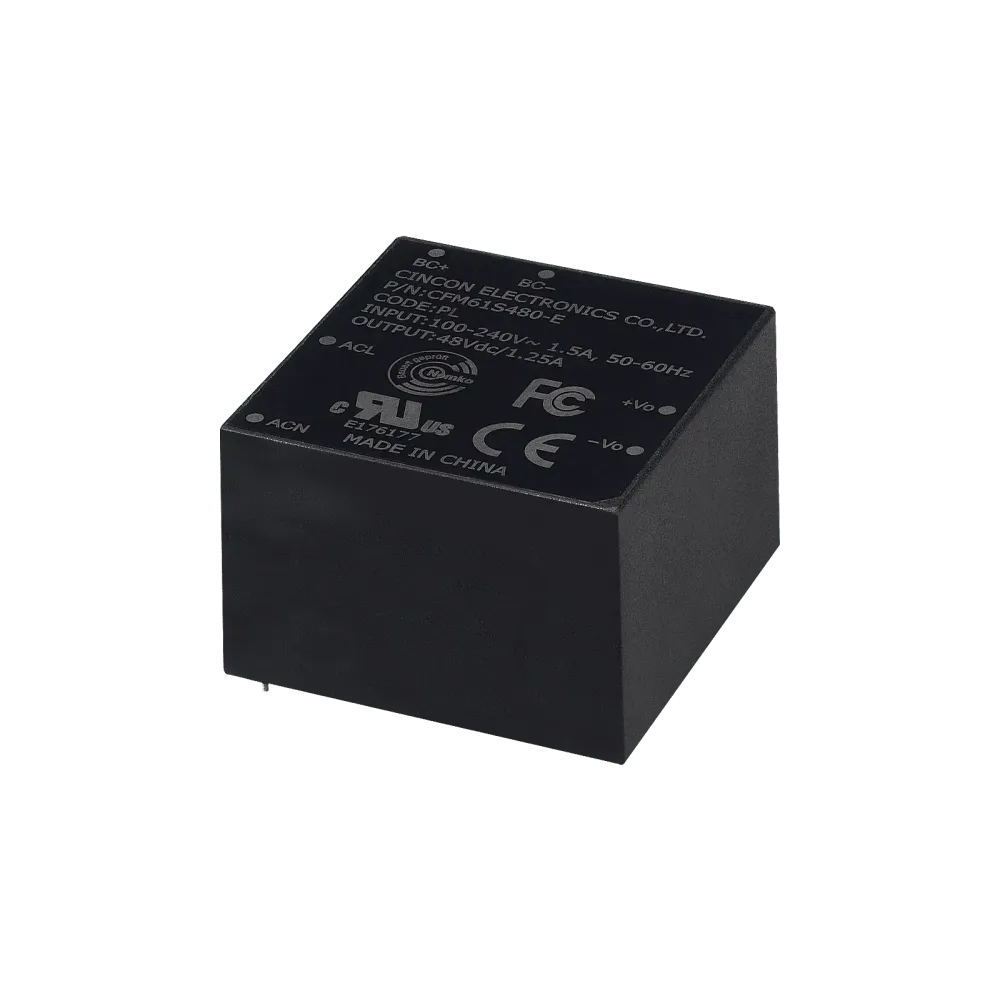

CFM61S family is a Class II AC/DC power supply with high power density and compact dimensions. Version for direct soldering on the PCB.
Technical data
- Wide input voltage range 90..264Vac
- High efficiency up to 90%
- Complies with EN55032 Class B and CIRSS/FCC Class B
- Approval IEC62368-1, UL62368-1 and EN62368-1
- Protection circuit : Permanent short-circuit resistance and overvoltage
- Class II
Product specifications
| Output voltage (VDC) | 48 V |
| Power | 60 W |
| Input voltage range (VAC) | 90-264 V |
| Manufacturer | Cincon |
| Application | ITE/AV |
| Certificates | EN62368-1 / ITE, UL62368-1 / ITE |
| Length | 54.2 mm |
| Width | 54.2 mm |
| Height | 35.8 mm |
Data sheets
