About the product

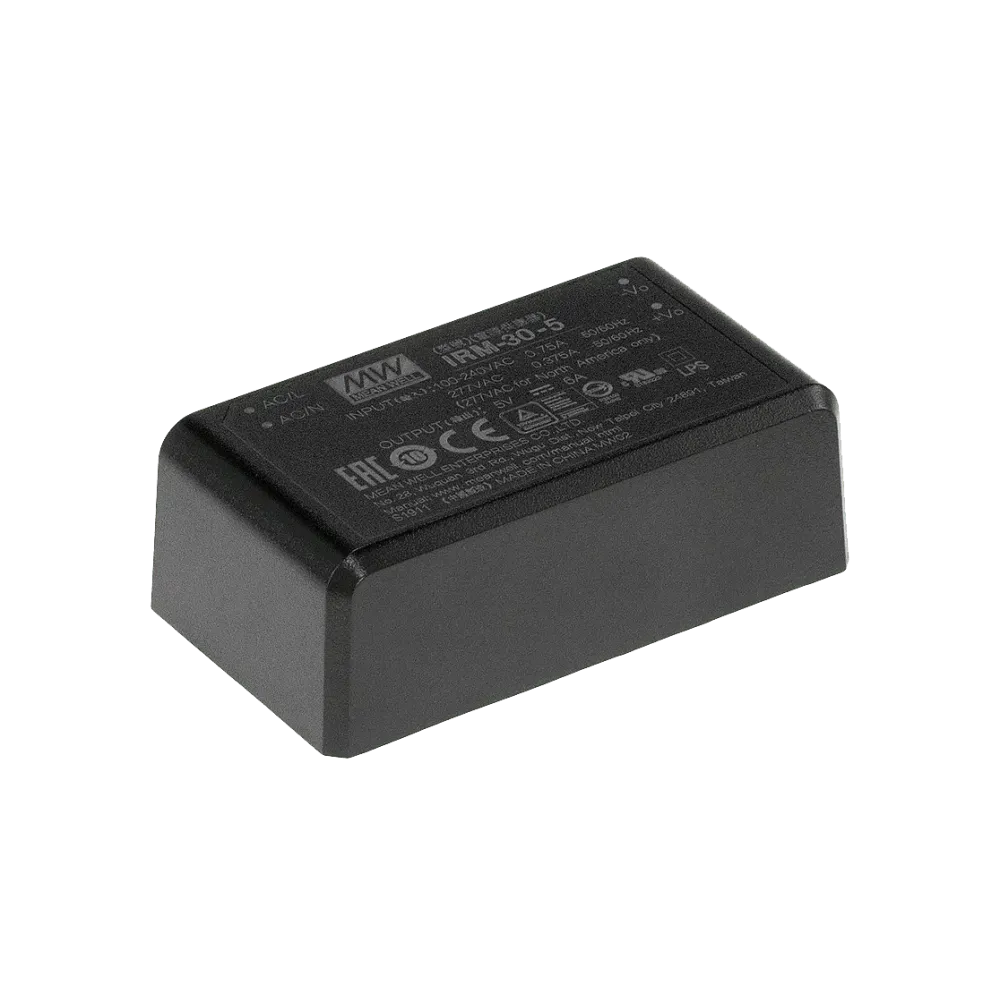

IRM-30-5 is a compact 30W AC/DC power supply unit for direct mounting on the PCB.
IRM-30 covers an input range from 85 to 305Vac and is constructed in a flame-retardant plastic housing.
Technical data
- Input voltage 85 to 264Vac
- No load power consumption <0.1W
- Very compact design
- Protection class II Device without earth connection
- Short-circuit, overload and overvoltage protection
- Dimensions 69.5 x 39 x 24mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Power | 30 W |
| Height | 24 mm |
| Output voltage (VDC) | 5 V |
| Certificates | EN60335-1 / Household, EN62368-1 / ITE, UL62368-1 / ITE |
| Input voltage range (VAC) | 85-305 V |
| Length | 69.5 mm |
| Width | 39 mm |
| Application | Budget, ITE/AV |
