About the product

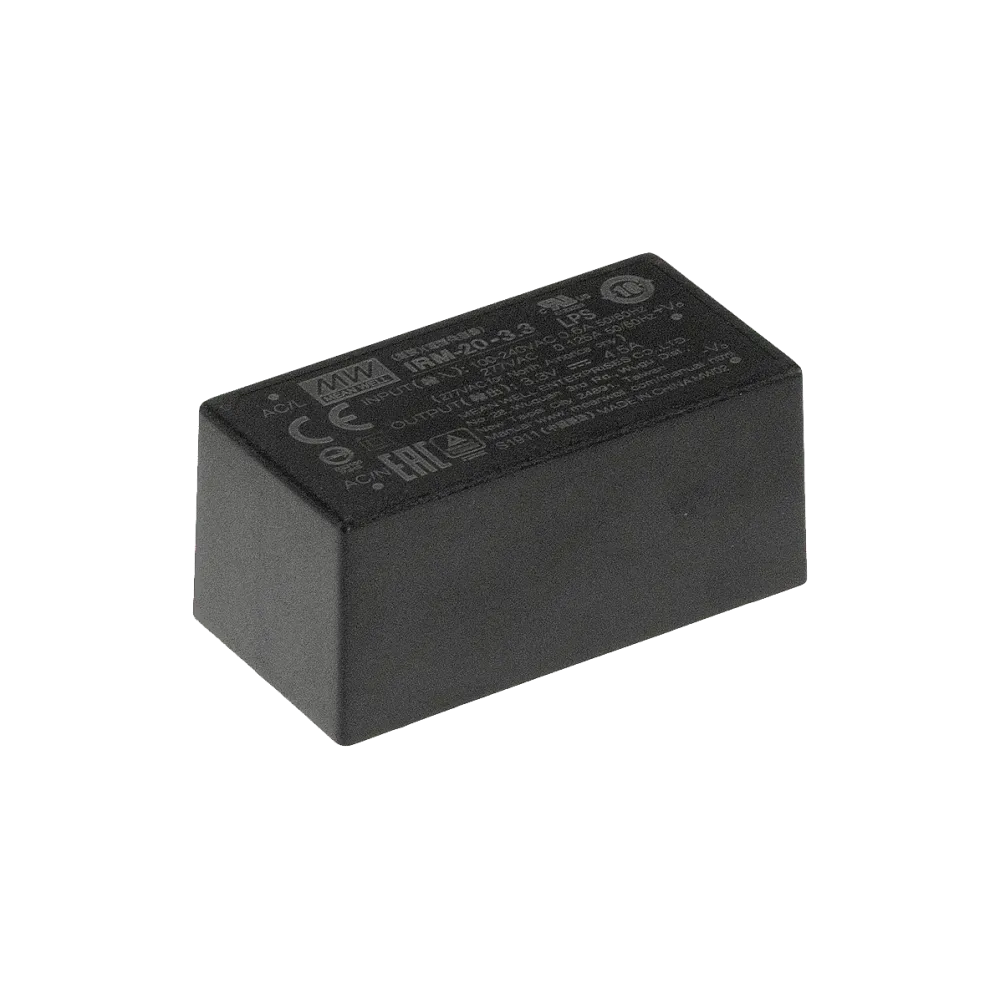

IRM-20-24 is a compact 20W AC/DC power supply unit for direct mounting on the PCB.
IRM-20 covers an input range from 85 to 305Vac and is constructed in a flame-retardant plastic housing.
Technical data
- Input voltage 85 to 264Vac
- No load power consumption <0.1W
- Very compact design
- Protection class II Device without earth connection
- Short-circuit, overload and overvoltage protection
- Dimensions 52.4 x 27.2 x 24mm (L x W x H)
Product specifications
| Output voltage (VDC) | 24 V |
| Manufacturer | MEAN WELL |
| Power | 21 W |
| Height | 24 mm |
| Application | ITE/AV |
| Input voltage range (VAC) | 85-305 V |
| Certificates | EN62368-1 / ITE, UL62368-1 / ITE |
| Length | 52.4 mm |
| Width | 27.2 mm |
