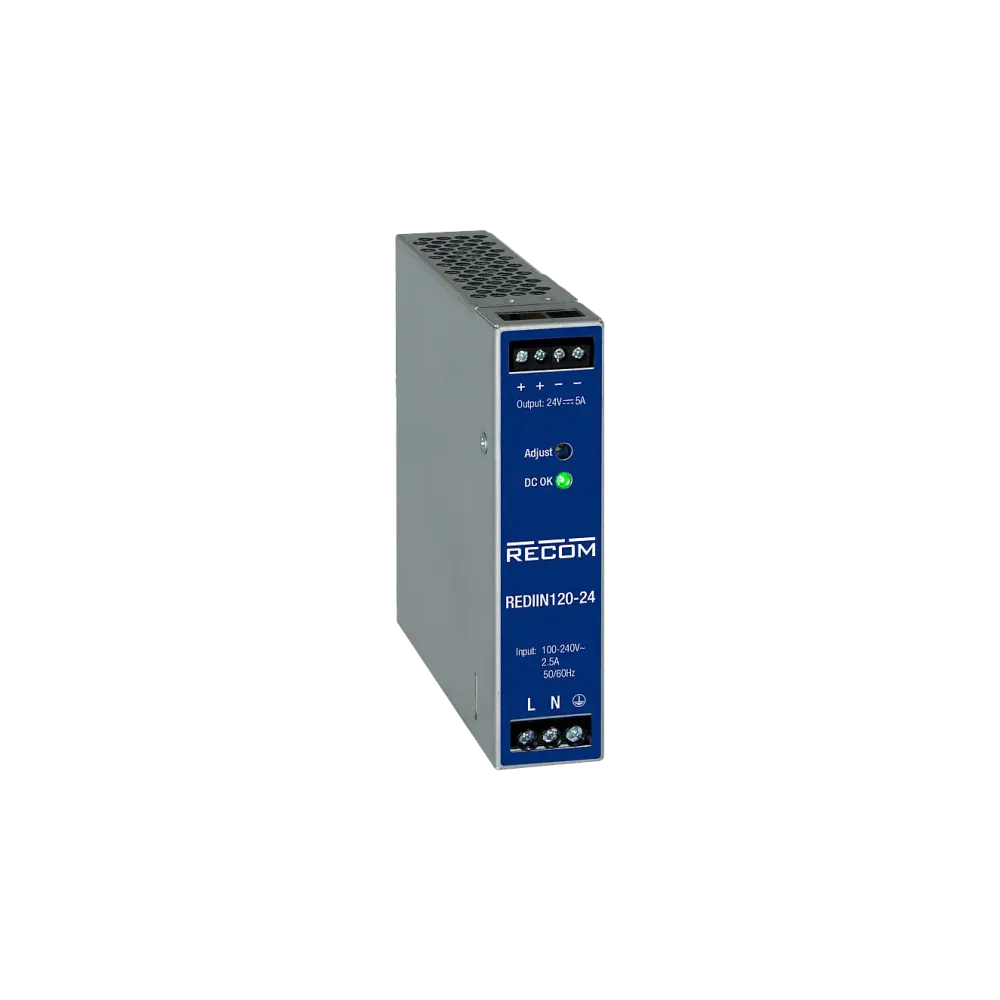

120W DIN rail power supply 24V/5A

The REDIIN120 DIN rail power supply series has been specifically designed for price-conscious users to provide essential functionality for industrial applications without compromising on quality and reliability. With an output power of 120W and a compact size of only 123.6 x 30.0 x 116.8mm, the REDIIN120 series offers three adjustable output variants from 12V, 24V to 48V. The devices are convection cooled and operate reliably in a temperature range from -30°C to +50°C (230VAC). They can be operated in constant current mode and are therefore ideal for inductive and capacitive loads. They are also certified in accordance with the safety standards IEC/EN/UL 62368-1, IEC/EN/UL 61010-1 and IEC/EN/UL/CSA 61010-2-201. The electromagnetic emissions comply with the EN 61000-6-4 Class B and EN 61000-6-2 standards for interference immunity in heavy industrial applications.

Technical data

• Universal input voltage range 90-264VAC
• Built-in constant current circuit
• Three output variants 12V, 24V and 48V available
• Adjustable output voltage range ±10%
• High power density with an efficiency of up to 89.5%
• Temperature range -30°C to +70°C
• Cold start capability -40°C
• Reduced power consumption in idle mode <0,21W
• Width only 30mm
• Low weight of only 450g
• 3-year guarantee
