40W UPS power supply unit with battery charging function for 24V battery

Delivery at your place between May 20 and Jun 24 2025

Add to cart

About the product

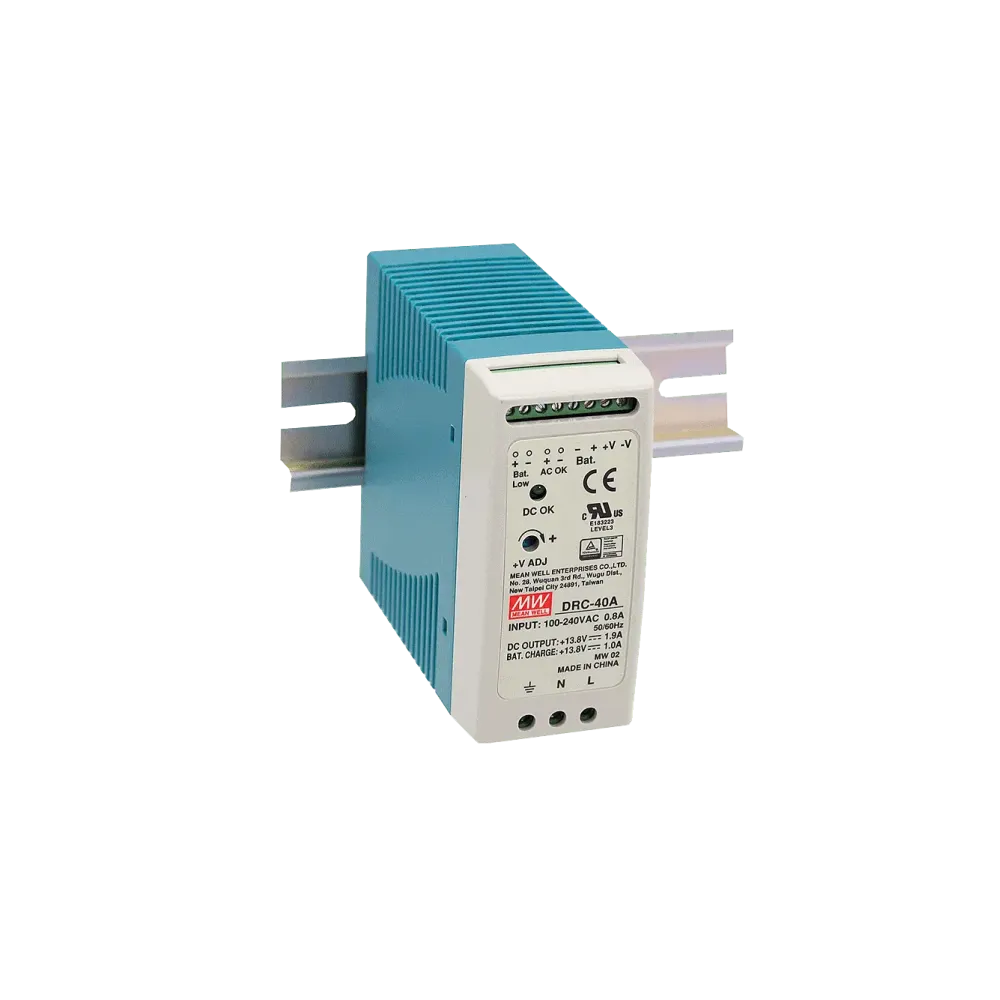

DRC-40B is a 40W DIN Rail power supply unit with UPS function. In addition to the main output, the power supply unit has a charging output for connecting a backup battery.

Technical data

Suitable for mounting on TS-35/7.5/15 top-hat rails
With battery charging function for UPS operation
Output voltage adjustable with internal potentiometer
Alarm signal for AC OK and battery low
Operating temperature range from -30°C to +70°C
LED display for DC OK
Dimensions 40 x 90 x 100mm (W x H x D)

Product specifications

Width	40 mm
Product series	DRC
Certificates	EN62368-1, UL62368-1, LPS
Overload behaviour	Hiccup mode
Additional functions	Battery charger, UPS function
Output voltage (VDC)	27.6 V
Depth	100 mm
Height	90 mm
Input voltage range (VAC)	90-264 V
Power	40 W
Manufacturer	MEAN WELL
Output current	0.95 A
