480W DIN rail power supply 24V/20A, 1 or 2-phase

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

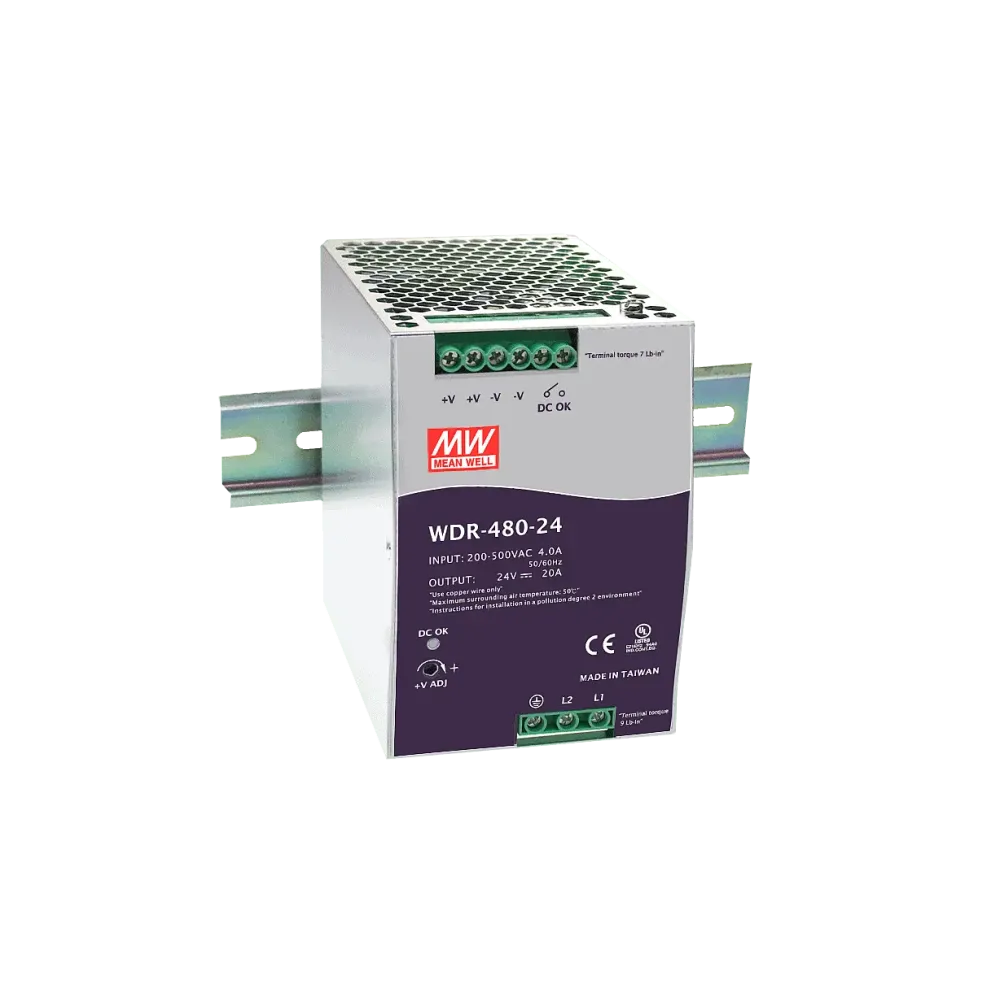

The WDR-480-24 DIN rail power supply unit is designed for operation with one or two phases. Thanks to the wide input range of 180 to 550Vac, the power supply unit is also particularly robust in unstable networks with high voltage peaks.

Technical data

1+2 phase input voltage 180 to 550Vac
Suitable for mounting on TS-35/7.5/15 top-hat rails
Operating temperature range from -30°C to +70°C
LED display for DC OK
Dimensions 85.5 x 125.2 x 128.5mm (W x H x D)

Product specifications

Output voltage (VDC)	24 V
Certificates	IEC62368-1, UL508
Input voltage range (VAC)	180-550 V
Product series	WDR
Status signals	DC OK relay contact
Depth	128.5 mm
Height	125.2 mm
Width	85 mm
Output current	20 A
Power	480 W
Manufacturer	MEAN WELL
Overload behaviour	Constant current limiting
