478W DIN rail power supply 36V/13.3A, 3-phase

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

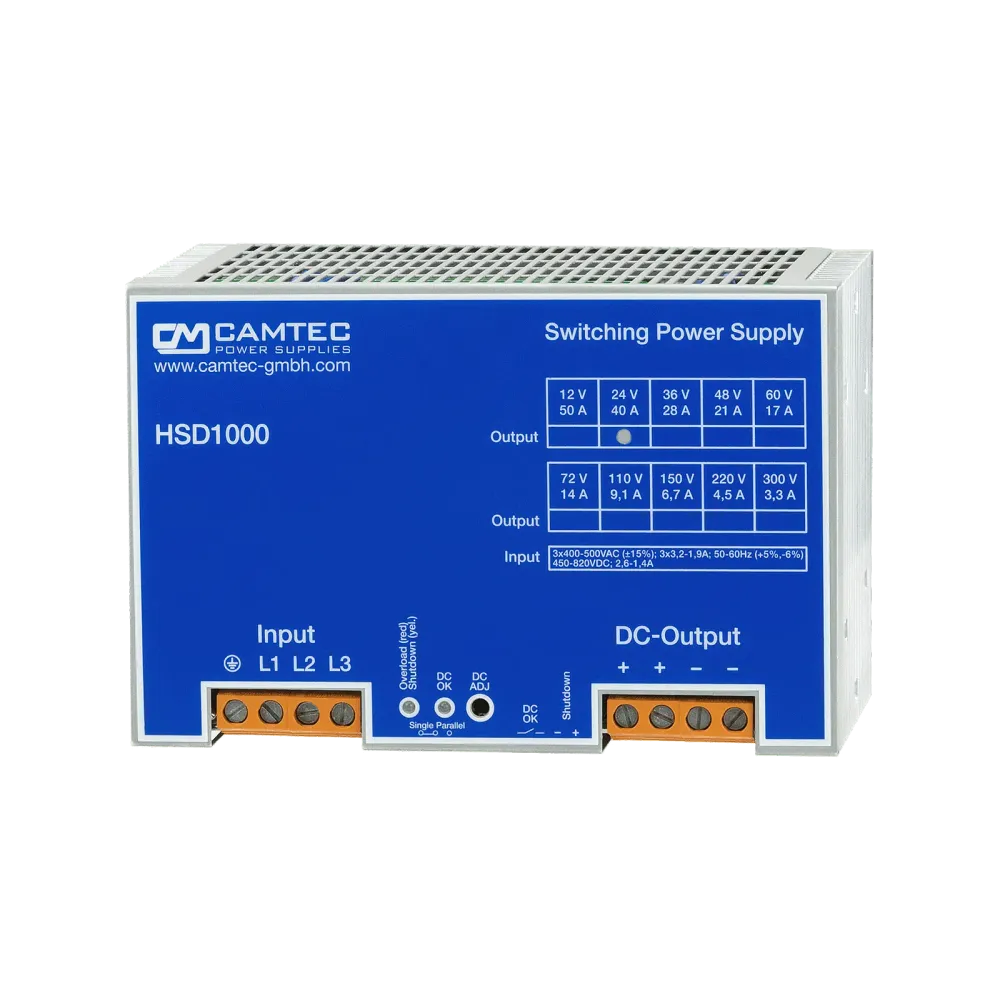

The Camtec HSD 3-phase models are industrial high-performance power supplies "Made in Germany". These power supplies are designed for complex loads and for battery charging. They can also be used in a 2-phase network configuration.

Technical data

Clean U/I characteristic without foldback, ideal for drives and DC UPS
High energy reserves and constant current output up to almost 0V enable controlled power output to complex loads without unwanted uncontrolled power boosts
Parallel operation N+1
Active inrush current limitation for low starting currents

Product specifications

Output current	13.3 A
Certificates	EN60204-1, EN61010-1, EN61010-2-201, EN62368-1
Overload behaviour	Constant current limiting
Additional functions	Parallel switchable
Product series	HSD
Control signals	Remote ON/OFF
Depth	115.6 mm
Width	150 mm
Status signals	AC OK relay contact, DC OK relay contact
Height	130 mm
Manufacturer	Camtec
Power	480 W
Output voltage (VDC)	36 V
Input voltage range (VAC)	340-575 V
