About the product

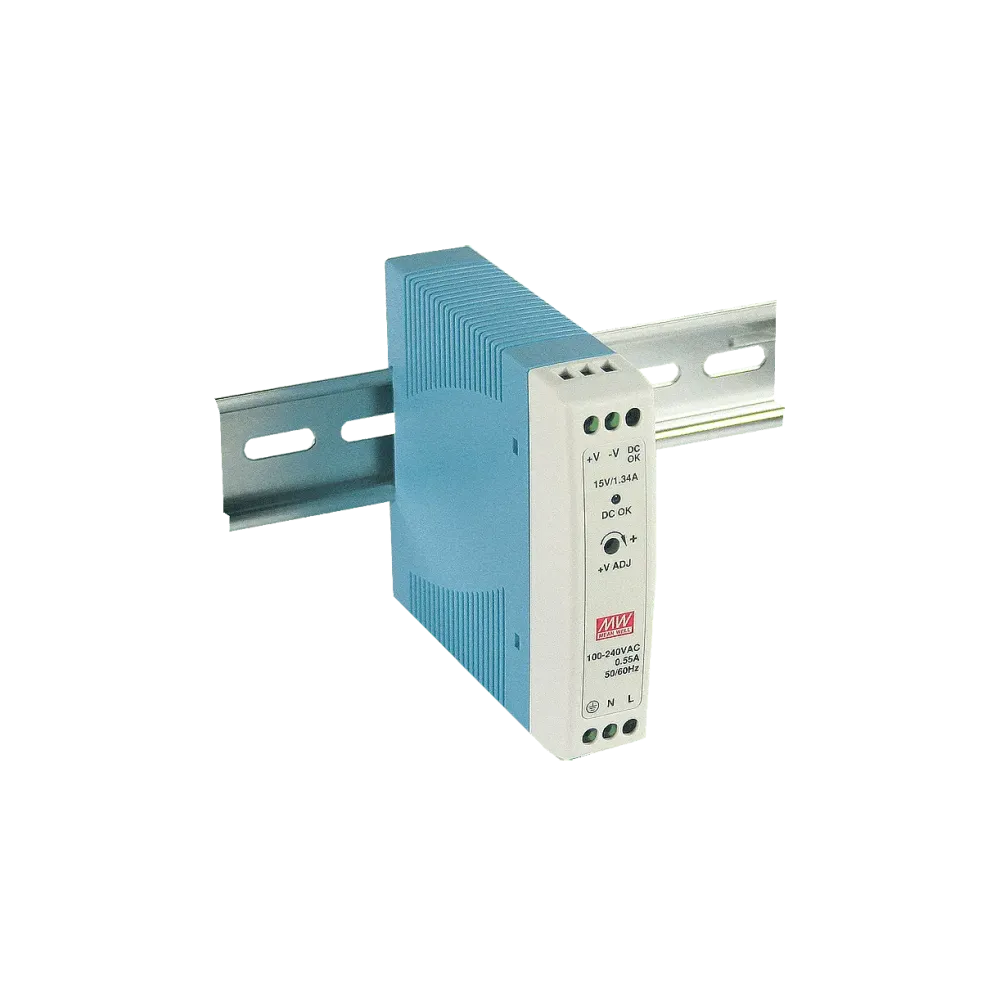

The compact MEAN WELL MDR-20-15 DIN rail power supply unit in a plastic housing saves space in the control cabinet. A DC-OK signal is integrated for remote monitoring.
Technical data
- No load power consumption 0.75W
- Suitable for mounting on TS-35/7.5/15 top-hat rails
- LED display for DC OK
- Dimensions 22.5 x 90 x 100mm (W x H x D)
Product specifications
| Manufacturer | MEAN WELL |
| Overload behaviour | Constant current limiting |
| Width | 22.5 mm |
| Product series | MDR |
| Depth | 100 mm |
| Height | 90 mm |
| Power | 20 W |
| Output current | 1.34 A |
| Output voltage (VDC) | 15 V |
| Input voltage range (VAC) | 90-264 V |
| Certificates | EN62368-1, AS/NZS62368-1, CNS15598-1, EAC TP TC 004, UL508 |
