240W DIN rail power supply 12V/20A, single phase

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

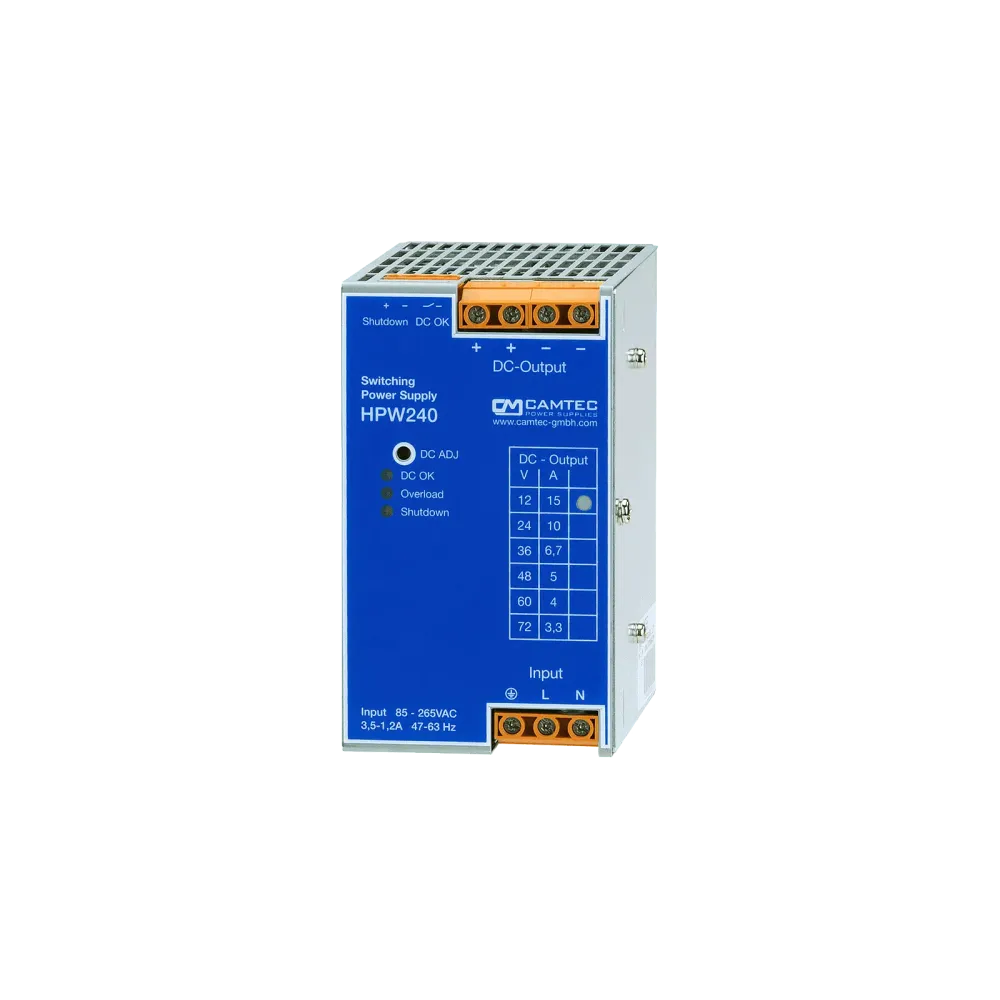

The Camtec HPW models are industrial high-performance power supply units "Made in Germany". These highly reliable power supply units are designed for complex loads and battery charging.

Technical data

Active inrush current limiter for low starting current (7A)
Efficiency 91.5%
Open-circuit-proof and permanently short-circuit, overvoltage and undervoltage-proof
Remote shutdown
Operating temperature range from -20° to +60°C at full load
Continuous power consumption of 312W in the 40°C temperature range
Suitable for mounting on TS-35 top-hat rails
Spring terminals 0.5 to 12mm2
Clean U/I characteristic without foldback, ideal for drives and DC UPS
Dimensions 130 x 75 x 115mm (H x W x D)
Highly reliable, shock and vibration resistant
Equipped with 125° Ultra Long Life capacitors
Made in Germany

Product specifications

Output voltage (VDC)	12 V
Overload behaviour	Constant current limiting
Additional functions	Parallel switchable
Product series	HPW
Control signals	Remote ON/OFF
Status signals	AC OK relay contact, DC OK relay contact
Depth	115 mm
Height	130 mm
Input voltage range (VAC)	85-264 V
Width	75 mm
Manufacturer	Camtec
Output current	15 A
Power	240 W
Certificates	EN60204-1, EN61010-1, EN61010-2-201, EN62368-1
