240W DIN rail power supply 24V/10A, 3-phase

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

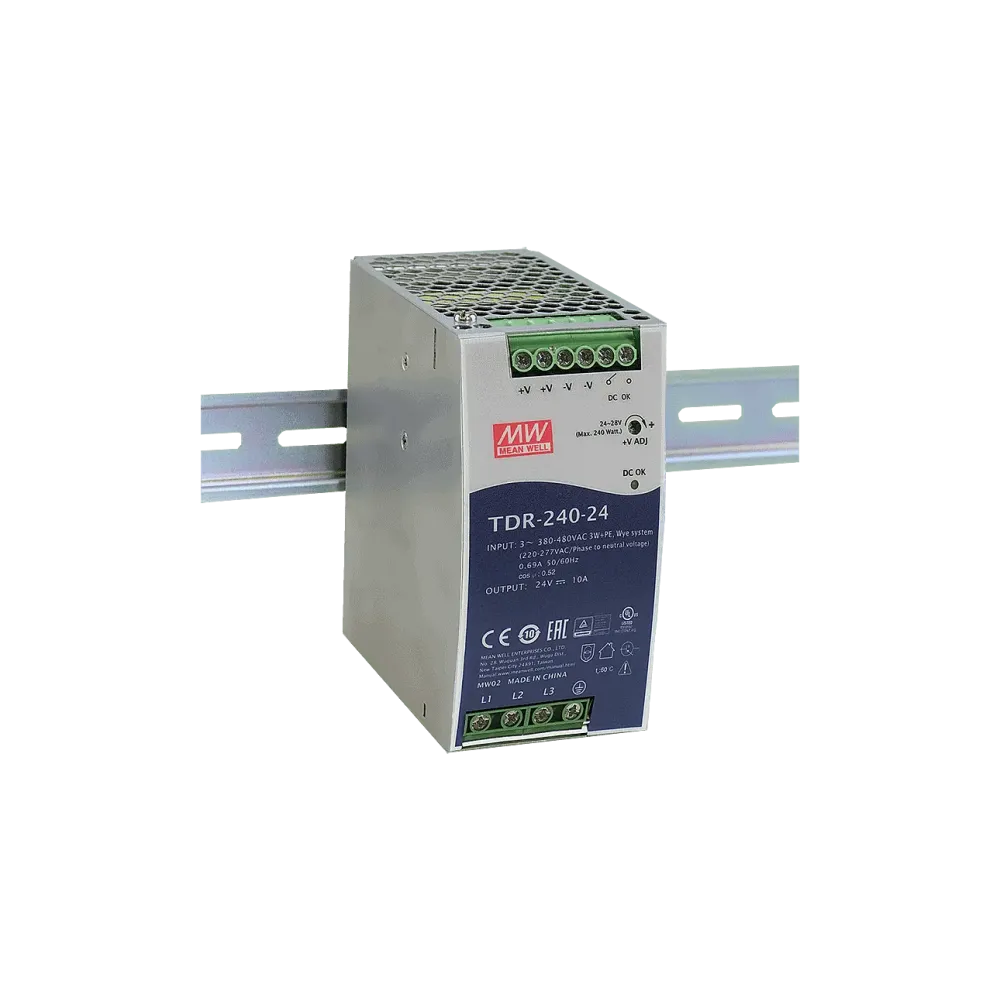

TDR-240-24 is a compact DIN rail power supply unit for 3-phase operation. The 63 mm wide metal housing saves space in the control cabinet. With the high efficiency of 92%, the power loss is minimized to keep the heating in the control cabinet as low as possible. The power supply unit is ideal for industrial control systems, semiconductor production or automation applications.

Technical data

Suitable for mounting on TS-35/7.5/15 top-hat rails
High efficiency 92%
Operating temperature range from -30°C to +70°C (up to 60°C without derating)
DC OK relay contact
Overvoltage category III according to EN61558, EN50178, EN60664-1, EN62477-1, EN60204-1
Approvals UL61010, EN61558-2-16
Dimensions 63 x 125.2 x 113.5mm (W x H x D)

Product specifications

Output voltage (VDC)	24 V
Input voltage range (VAC)	340-550 V
Overload behaviour	Constant current limiting
Product series	TDR
Depth	113.5 mm
Status signals	DC OK relay contact
Height	125.2 mm
Width	63 mm
Output current	10 mA
Power	240 W
Manufacturer	MEAN WELL
Certificates	EAC TP TC 004, EN61558-2-16, UL61010-1, UL61010-2-201, OVC III
