480W DIN rail power supply 48V/10A, single phase

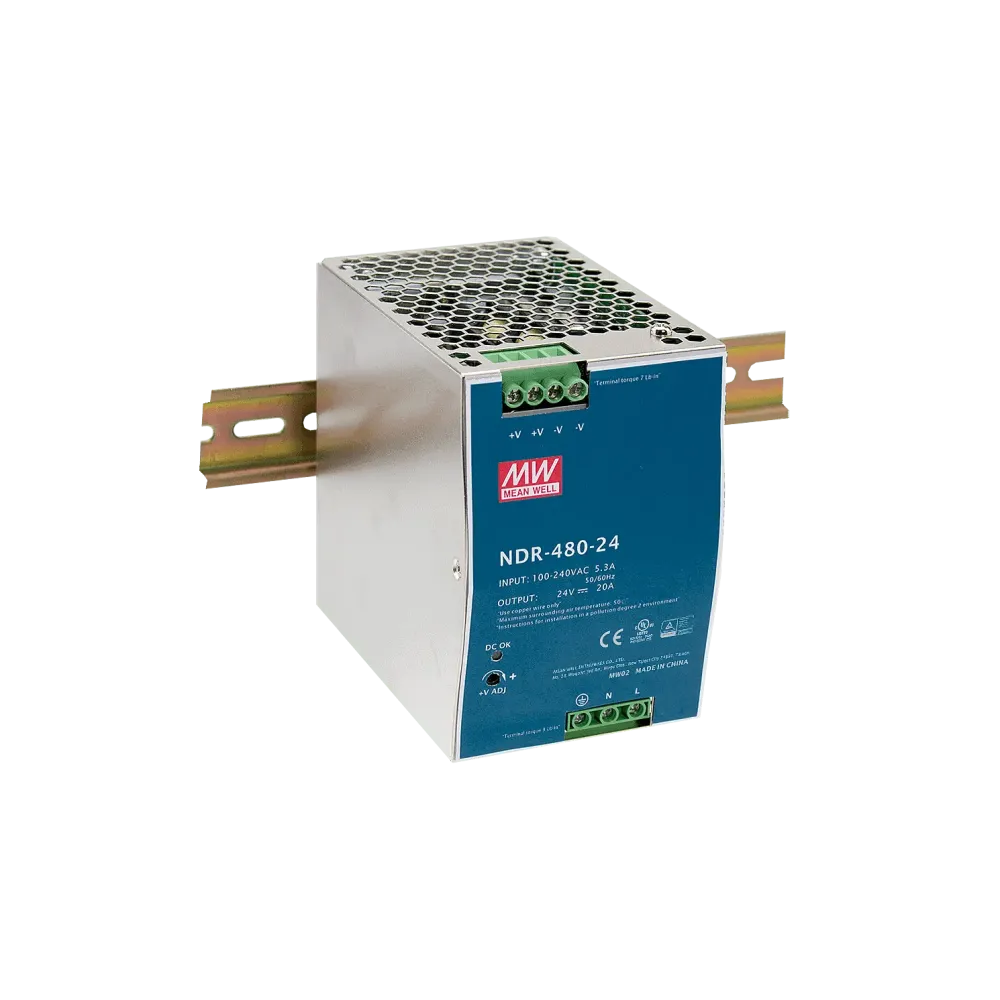

NDR-480-48 is a cost-effective, slim 480 Watt DIN Rail power supply unit for mounting on TS-35/7.5 or TS35/15 mounting rails. The housing is only 85.5 mm wide, which saves space in the control cabinet.
. NDR-480-24 is equipped with a metal housing, which increases the heat dissipation of the device. With an efficiency of up to 92.5 %, the entire series can be operated at an ambient temperature between -20°C and 70°C under air convection. The power supply is equipped with a constant current mode for overload protection and is suitable for various inductive or capacitive applications. The complete protection functions and the corresponding certifications for industrial control devices (UL508, TUV BS EN62368-1) make the NDR-480 a very competitive power supply solution for industrial applications.

Technical data

• Suitable for mounting on TS-35/7.5/15 top-hat rails
• Operating temperature range from -20°C to +70°C
• LED display for DC OK
• Dimensions 85.5 x 125.2 x 128.5mm (W x H x D)
