480W DIN rail power supply 24V/20A, 3-phase

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

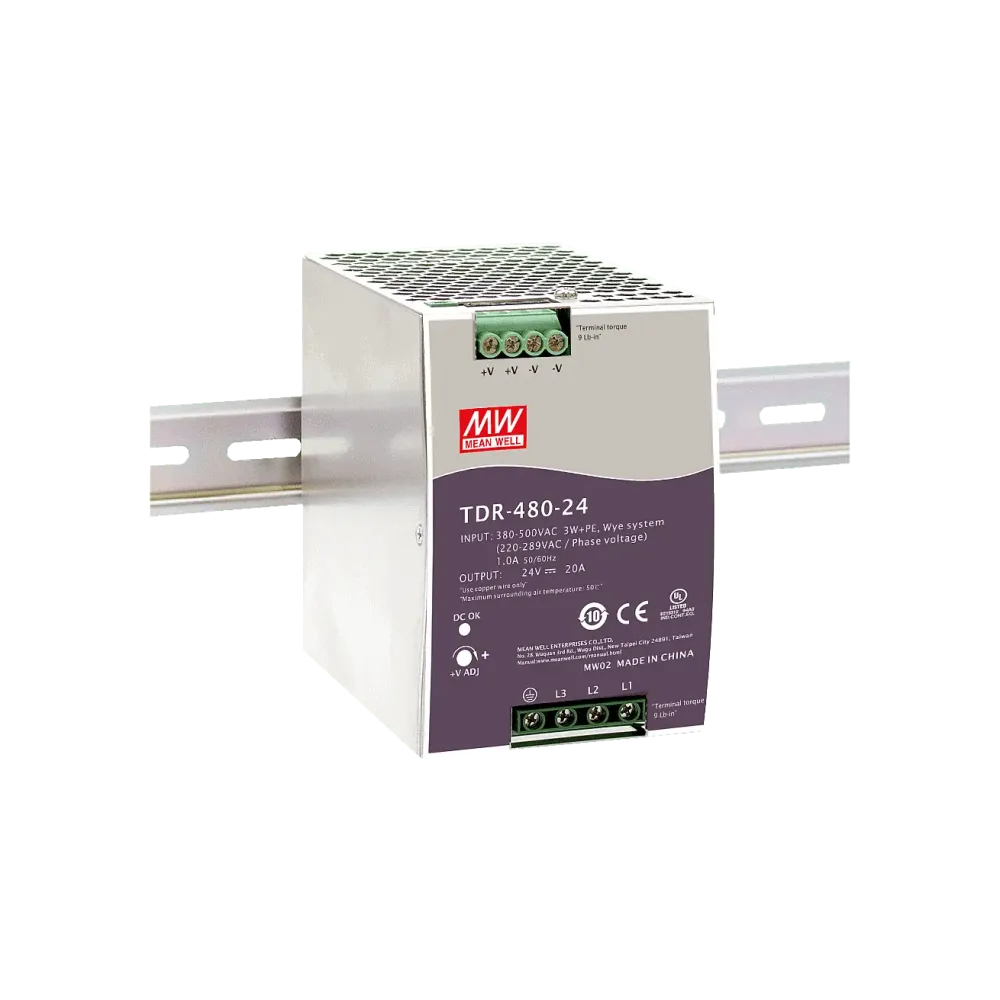

TDR-480-24 is a compact DIN rail power supply for 3-phase operation. The metal housing with a width of 85.5mm saves space in the control cabinet. With the high efficiency of 93%, the power loss is minimized to keep the heating in the control cabinet as low as possible. The power supply unit is ideal for industrial control systems, semiconductor production or automation applications.

Technical data

3 phase input voltage 340 to 550Vac (2 phase operation possible)
Suitable for mounting on TS-35/7.5/15 top-hat rails
High efficiency 93%
Operating temperature range from -30°C to +70°C
LED display for DC OK
Dimensions 85.5 x 125.2 x 128.5mm (W x H x D)

Product specifications

Output voltage (VDC)	24 V
Input voltage range (VAC)	340-550 V
Overload behaviour	Constant current limiting
Width	85.5 mm
Product series	TDR
Depth	128.5 mm
Height	125.2 mm
Output current	20 A
Power	480 W
Manufacturer	MEAN WELL
Certificates	IEC62368-1, UL62368-1, UL508
