60W DIN rail power supply 24V/2.5A, 1 or 2-phase

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

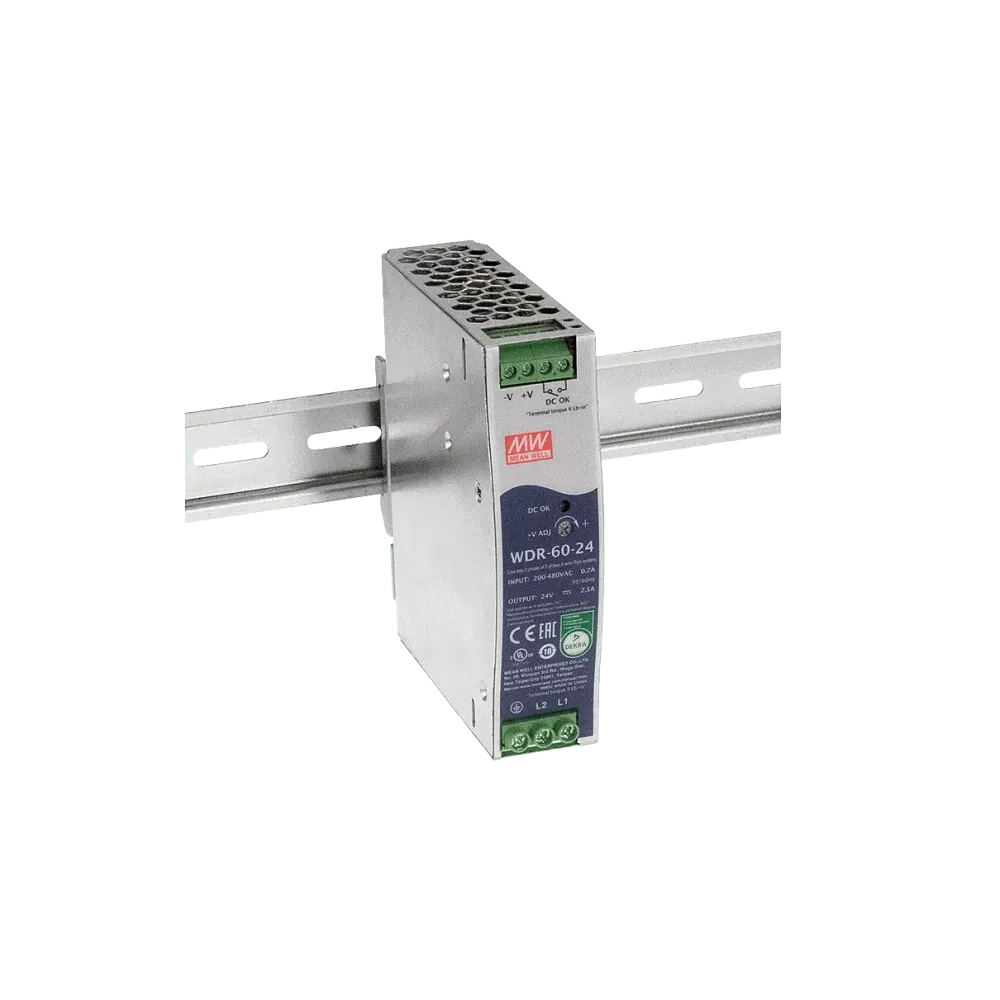

The WDR-60-24 DIN rail power supply unit is designed for operation with one or two phases. Thanks to the wide input range of 180 to 550Vac, the power supply unit is also particularly robust in unstable networks with high voltage peaks.

Technical data

Suitable for mounting on TS-35/7.5/15 top-hat rails
Operating temperature range from -30°C to +85°C
LED display for DC OK
Overvoltage category III
Built-in DC OK relay contact
Dimensions 32 x 125.2 x 102mm (W x H x D)

Product specifications

Width	32 mm
Overload behaviour	Constant current limiting
Input voltage range (VAC)	180-550 V
Product series	WDR
Depth	102 mm
Status signals	DC OK relay contact
Height	125.2 mm
Output current	2.5 A
Power	60 W
Manufacturer	MEAN WELL
Output voltage (VDC)	24 V
Certificates	EN61558-2-16, UL61010-1
