Item ID: 45371

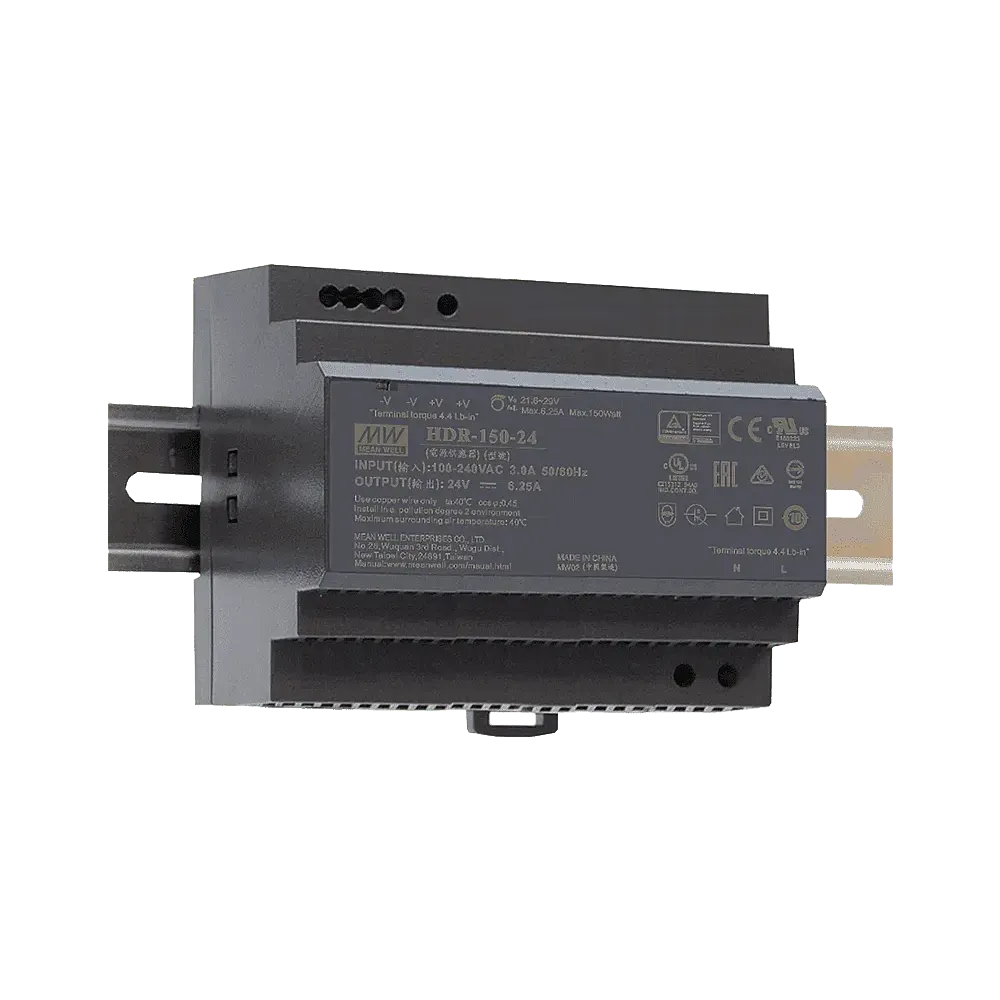

150W DIN rail power supply 24V/6.25A

Delivery at your place between May 21 and Jun 25 2025

About the product

HDR-150-24 is an ultra-compact DIN rail power supply for installation in distribution boards. Approved for industrial and domestic applications, the power supplies are the ideal solution for industrial control systems and building automation.

Technical data
  • Suitable for mounting on TS-35/7.5/15 top-hat rails
  • Haushaltszulassung EN61558-2-16
  • Protection class II Device without earth connection
  • LED display for DC OK
  • Dimensions 105 x 90x 54.5mm (W x H x D)

Product specifications

Output voltage (VDC) 24 V
Overload behaviour Hiccup mode
Width 105 mm
Product series HDR
Depth 54.5 mm
Height 90 mm
Input voltage range (VAC) 85-264 V
Output current 6.25 A
Power 150 W
Manufacturer MEAN WELL
Certificates IEC62368-1, EAC TP TC 004, UL62368-1, EN61558-2-16, UL61010-1, OVC III
