About the product

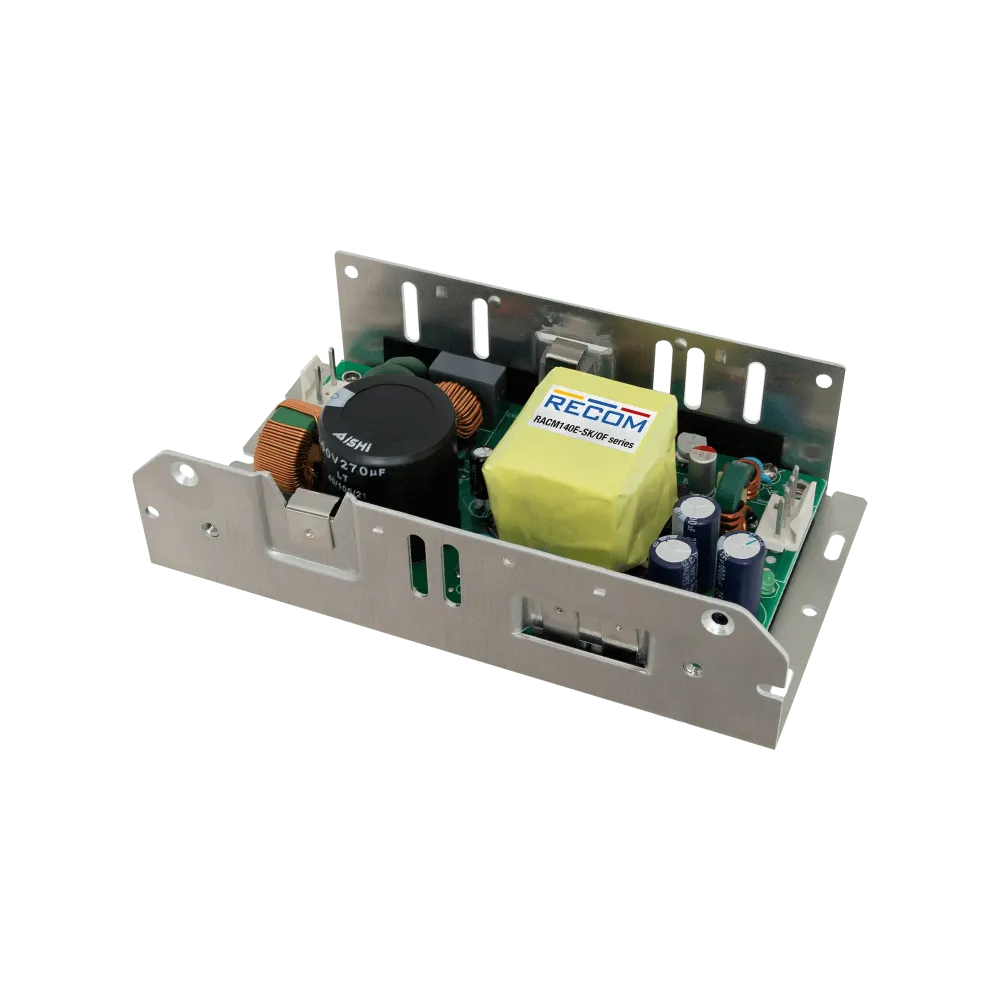

The RACM140E-K AC/DC power supply units are characterized by cost efficiency and reliability. They deliver a continuous output of 140 watts and a peak output of 210 watts for dynamic load peaks of up to 10 seconds. Mounting options include industry standard 3 "x5 screw points or robust lugs that allow direct top mounting on base plates. Connection is via a wiring harness and pin headers or optional tool-less "push-in" terminals. Certified for household and industrial standards with overvoltage category OVC III or OVC II for operation up to 5000 meters, the series has UL certifications with 2MOPP and meets BF requirements for medical use. To simplify system integration, the modules offer ample scope for compliance with EN55032 'B' limits and increased surge and burst immunity.
Technical data
- Cost-efficient and reliable design
- 210W peak power for up to 10s
- Overvoltage category OVC III; 2000m
- 5000m operating altitude
- Open frame or closed; optional: push-in connections
- 2xMOPP insulation, BF applicable
- 3-year guarantee
Product specifications
| Width | 81.5 mm |
| Manufacturer | Recom |
| Output voltage (VDC) | 15 V |
| Length | 147 mm |
| Height | 38 mm |
| Application | Household, ITE/AV, Medical |
| Protection class | Class I |
| Power | 140 W |
| Additional functions | OVC III |
