300W Open Frame Power Supply 36V/8.3A, ITE, Medical, Household

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

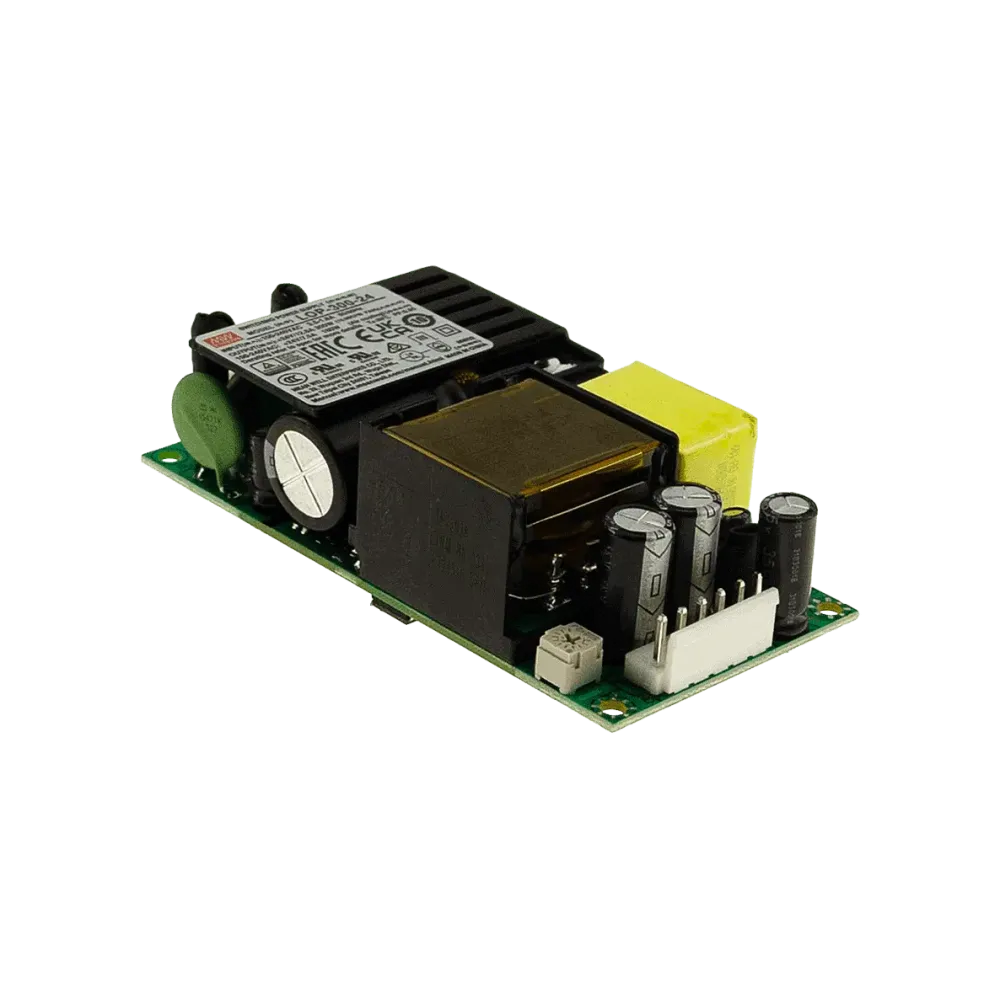

LOP-300 is a 4x2 300W open frame power supply with low height and high power density. The power supply can be used in both Class I and Class II applications. Comprehensive safety approvals for ITE, household and medical applications make the LOP-300 a high-performance power supply unit for a wide range of applications.

Technical data

4x2 Power supply unit with only 25.4mm height
80-264Vac wide input range with PFC
No load power consumption <0.5W
Global certifications for ITE, household and medical applications
150% peak load for 3 seconds
180W convection-cooled, 300W with forced ventilation
Overvoltage category III (OVC III)
-40 to +80°C Operating temperature range
Leakage current < 500uA
Approved operating altitude 5000M

Product specifications

Manufacturer	MEAN WELL
Height	25.4 mm
Protection class	Class I, Class II
Width	50.8 mm
Length	101.6 mm
Standard size	2 x 4 inches
Application	Household, ITE/AV, Medical
Power	300 W
Output voltage (VDC)	36 V
Additional functions	12VDC auxiliary output, peak power
