400W Open Frame Power Supply 48V/8.4A, ITE, Medical, Household

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

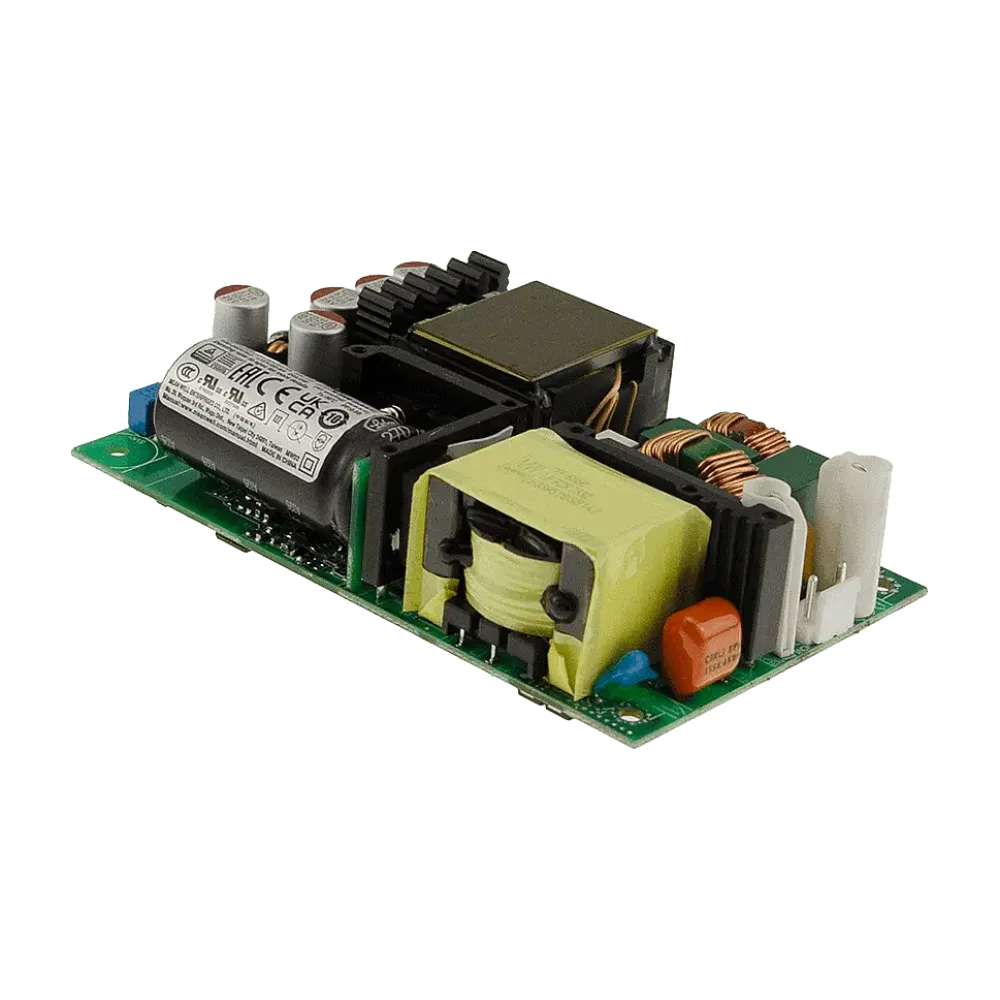

LOP-400 is a 5x3 400W open frame power supply with low height and high power density. The power supply can be used in both Class I and Class II applications. Comprehensive safety approvals for ITE, household and medical applications make the LOP-400 a high-performance power supply unit for a wide range of applications.

Technical data

5x3 power supply unit with only 27.5mm height
80-264Vac wide input range with PFC
Global certifications for ITE, household and medical applications
150% peak load for 3 seconds
250W convection-cooled, 400W with forced ventilation
Overvoltage category III (OVC III)
-40 to +80°C Operating temperature range
Leakage current < 500uA
Approved operating altitude 5000M

Product specifications

Manufacturer	MEAN WELL
Control signals	Remote sense
Height	27.5 mm
Protection class	Class I, Class II
Width	76.2 mm
Length	127 mm
Standard size	3 x 5 inches
Application	Household, ITE/AV, Medical
Power	400 W
Output voltage (VDC)	48 V
Additional functions	12VDC auxiliary output, peak power
