500W Open Frame Power Supply 48V/10.4A, ITE, Medical, Household

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

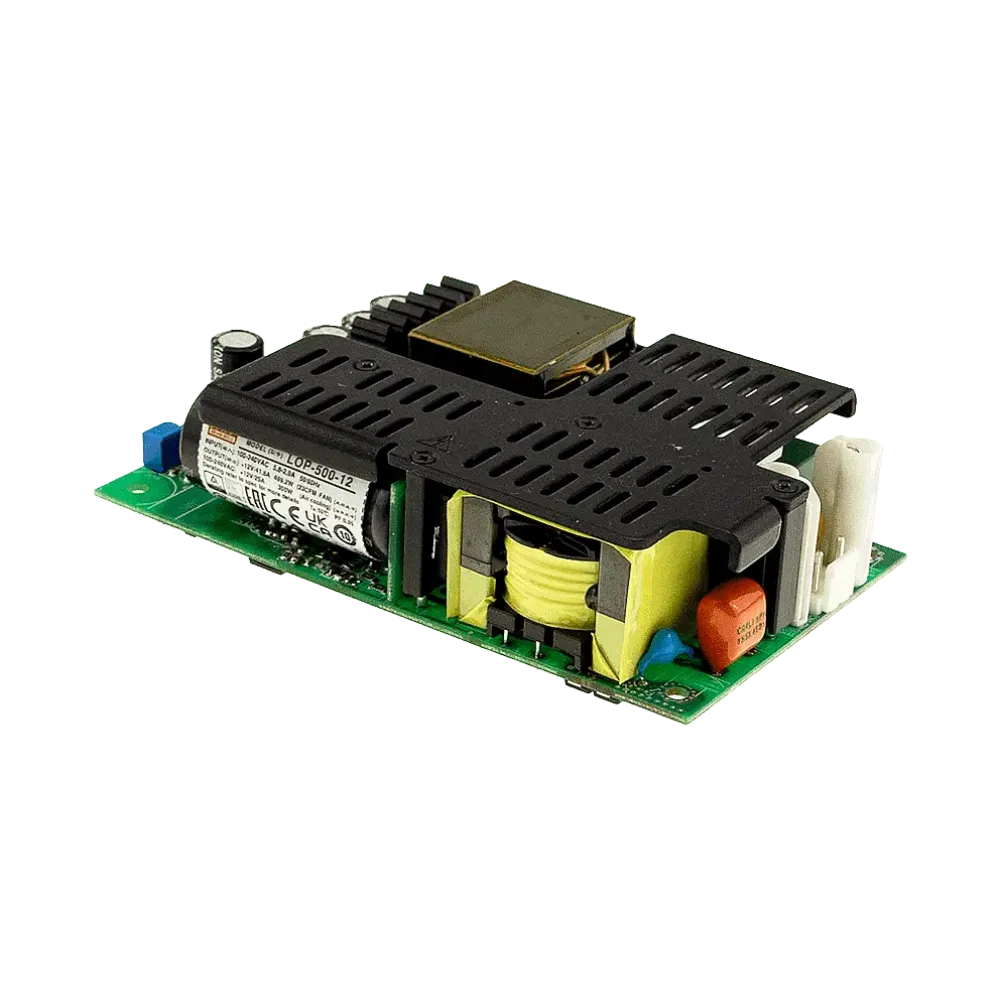

LOP-500 is a 5x3 500W open frame power supply with low height and high power density. The power supply can be used in both Class I and Class II applications. Comprehensive safety approvals for ITE, household and medical applications make the LOP-500 a high-performance power supply unit for a wide range of applications.

Technical data

5x3 power supply unit with only 30.5mm height
80-264Vac wide input range with PFC
Global certifications for ITE, household and medical applications
150% peak load for 3 seconds
320W convection-cooled, 500W with forced ventilation
Overvoltage category III (OVC III)
-40 to +80°C Operating temperature range
Leakage current < 500uA
Approved operating altitude 5000M

Product specifications

Manufacturer	MEAN WELL
Control signals	Remote sense
Protection class	Class I, Class II
Width	76.2 mm
Power	500 W
Length	127 mm
Standard size	3 x 5 inches
Application	Household, ITE/AV, Medical
Output voltage (VDC)	48 V
Height	30.5 mm
Additional functions	12VDC auxiliary output, peak power
