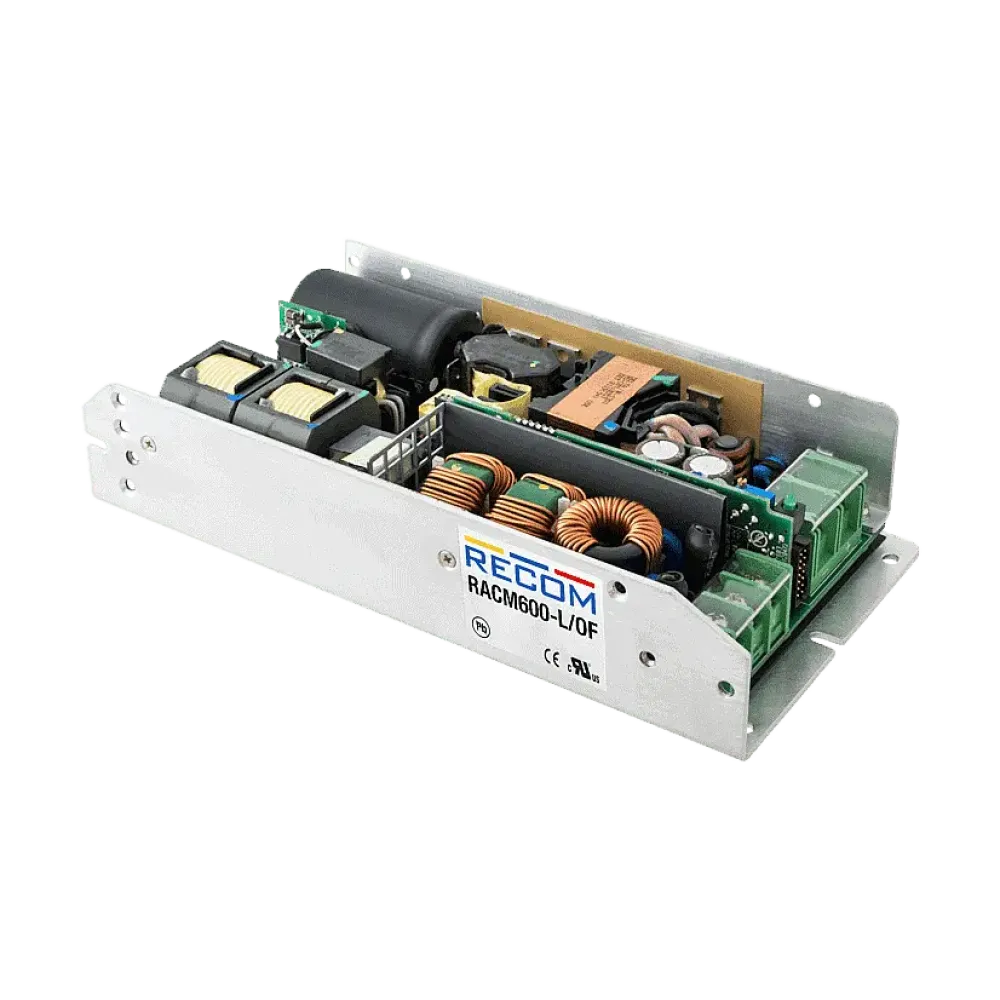

600W open frame power supply unit in U-profile 12V/66.67A, medical and industrial

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

The RECOM RACM600-12SL/OF delivers up to 400/450W continuously at 115/230Vac mains voltage under convection cooling or up to 800W as a temporary peak or continuous 600W in systems with forced airflow. The series has a universal 80-275VAC input and is available with a +/-20% adjustable 24V output and an additional 5V/0.5A standby output. The power supply unit is certified for medical applications according to 2x MOPP and for industrial applications according to IEC62368-1. Monitoring and control functions can be controlled via the integrated PMBus interface.

Technical data

400/450 watt convection-cooled (115/230VAC)
600 watts forced air or peak power
5VSB output
Redundant operation; active current sharing
Remote Sense, Remote ON/OFF, PMBus
IEC60601 MOPP insulation system, BF-ready

Product specifications

Output voltage (VDC)	12 V
Control signals	Remote ON/OFF, Remote Sense
Height	40.6 mm
Length	196.8 mm
Width	101.6 mm
Status signals	Power good signal
Protection class	Class I
Application	ITE/AV, Medical
Power	600 W
Manufacturer	Recom
Additional functions	5VDC auxiliary output, peak power
