About the product

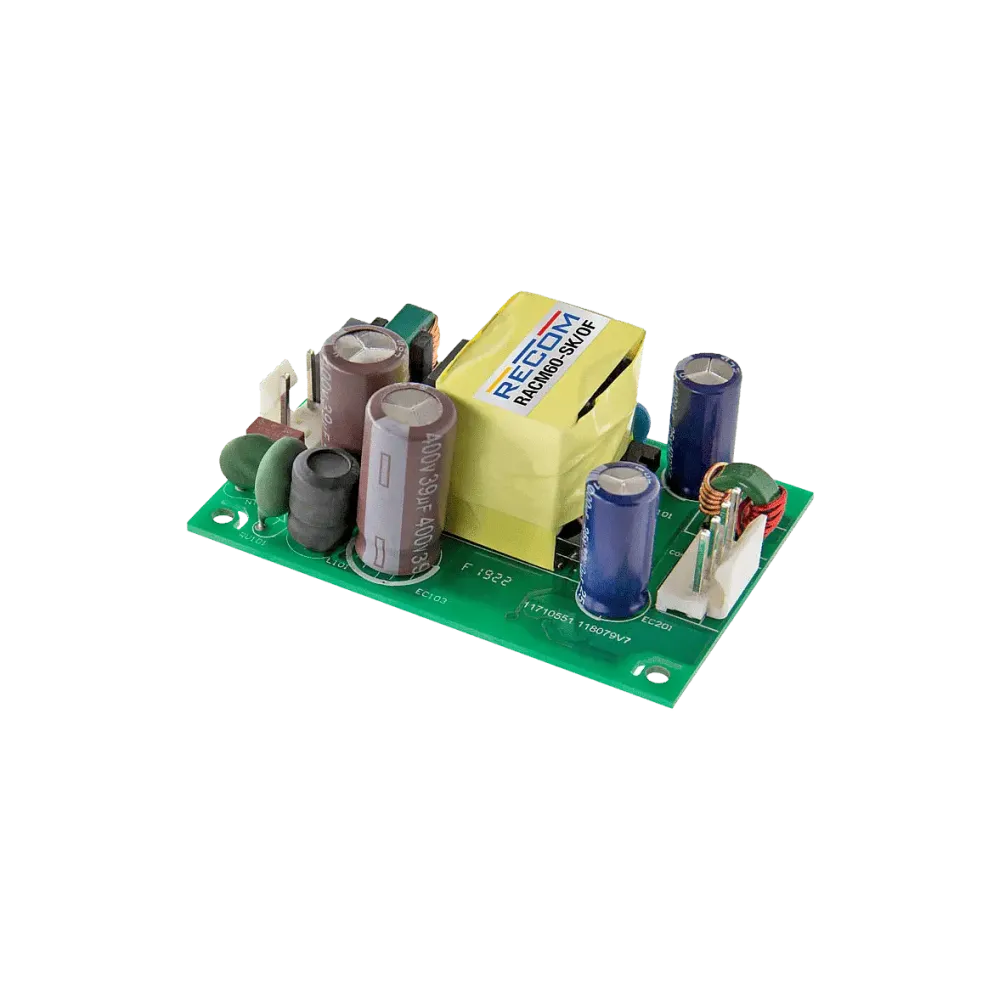

The versatile RACM60-K/OF series AC/DC converters for industrial, domestic and medical applications deliver 60 watts of output power at temperatures from -40°C to +55°C with natural air convection and up to +85°C with derating or forced cooling. With a clear focus on extended thermal performance for space-constrained systems, these 2 x 3 compact modules are designed to achieve the highest overall efficiencies across the entire output load range of universal AC inputs. The RACM60-K/OF is certified to ANSI/AAMI/IEC 60601-1 for medical safety and EN 60601-1-2 for medical EMC and offers 4kVAC/1 min isolation, 2MOPP and meets the requirements of B and BF. It is additionally certified to IEC/EN62368-1 (CB Report) and IEC61558-1/-2-16 for industrial applications and IEC/EN60335-1 for household appliances. The robust built-in class B EMC filter provides sufficient margin to enable both installation class II and class I PELV with earthed output. Thanks to a range of mechanical mounting options, the RACM60 is suitable for many different installation conditions: The standard chassis mount part fits Molex connectors and the /PCB option allows direct mounting into PCBs.
Technical data
- Input range: 80-264VAC or 80-305VAC
- Temperature range: -40 to +85°C with power reduction
- Overvoltage category OVC III
- 2MOPP medically certified B and BF compliant
- Integrated class B EMC filter
- 4000m/5000m (medical/ITE) Operating altitude
Product specifications
| Height | 32 mm |
| Length | 76.2 mm |
| Standard size | 2 x 3 inches |
| Protection class | Class I, Class II |
| Width | 50.8 mm |
| Application | Household, ITE/AV, Medical |
| Manufacturer | Recom |
| Power | 60 W |
| Output voltage (VDC) | 12 V |
| Additional functions | OVC III |
