About the product

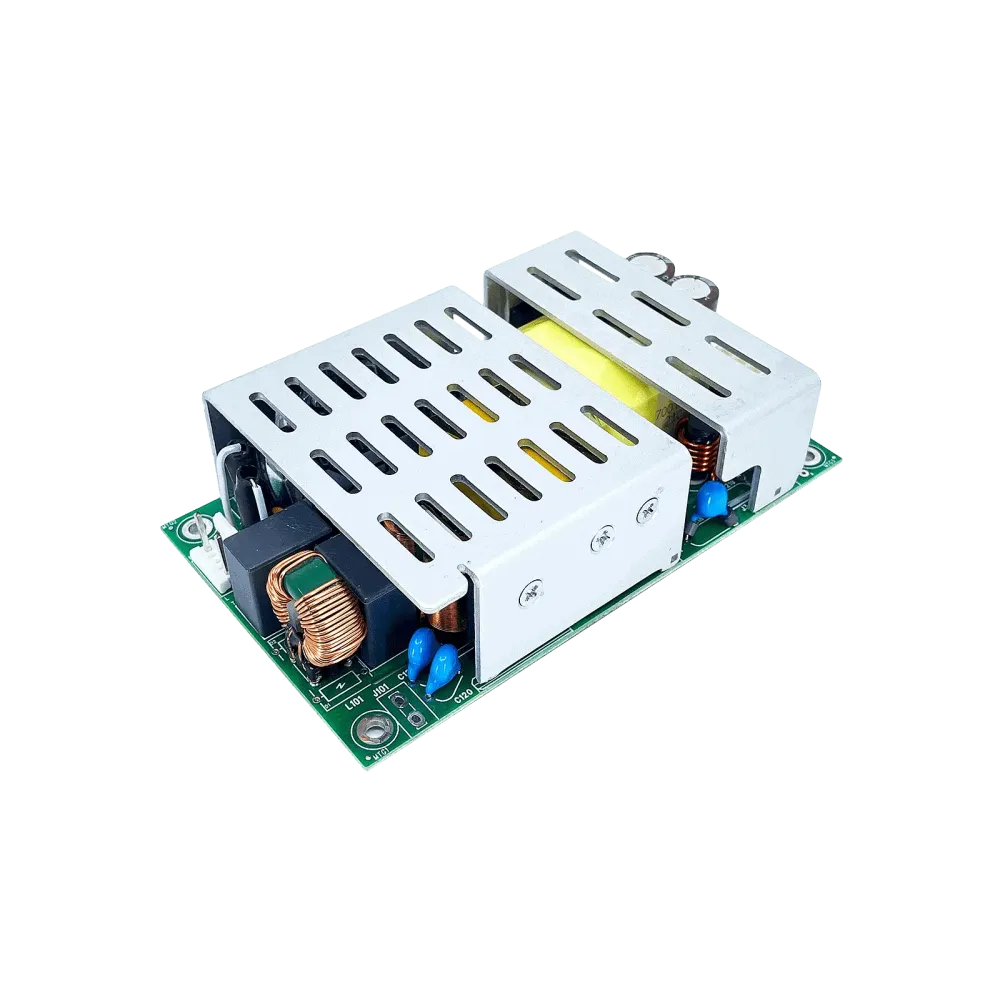

The SLB300 Single Output Power Supplies from SL Power offer a maximum output of 300 watts, 7 voltage versions in the range from 12V to 56Vdc and an output current of up to 22.5A.
Technical data
- 3''x 5''x 1.4'' Housing
- Universal input voltage range 80V..264Vac
- 300 watts with 100 LFM airflow
- 200 watt convection-cooled
- EN/CSA/IEC/UL62368-1 Approved
- EN/CSA/IEC/UL60601-1-1, 3rd Ed. Approved
- Suitable for 1U applications
- Class B conducted and airborne EMI
- 5000m above sea level.
- RoHS compliant
- 3-year guarantee
- Manufacturer SL Power
Product specifications
| Output voltage (VDC) | 24 V |
| Power | 300 W |
| Application | ITE/AV, Medical |
| Protection class | Class I |
| Standard size | 3 x 5 inches |
| Length | 127 mm |
| Width | 76.2 mm |
| Height | 35.56 mm |
| Manufacturer | SL Power |
