About the product

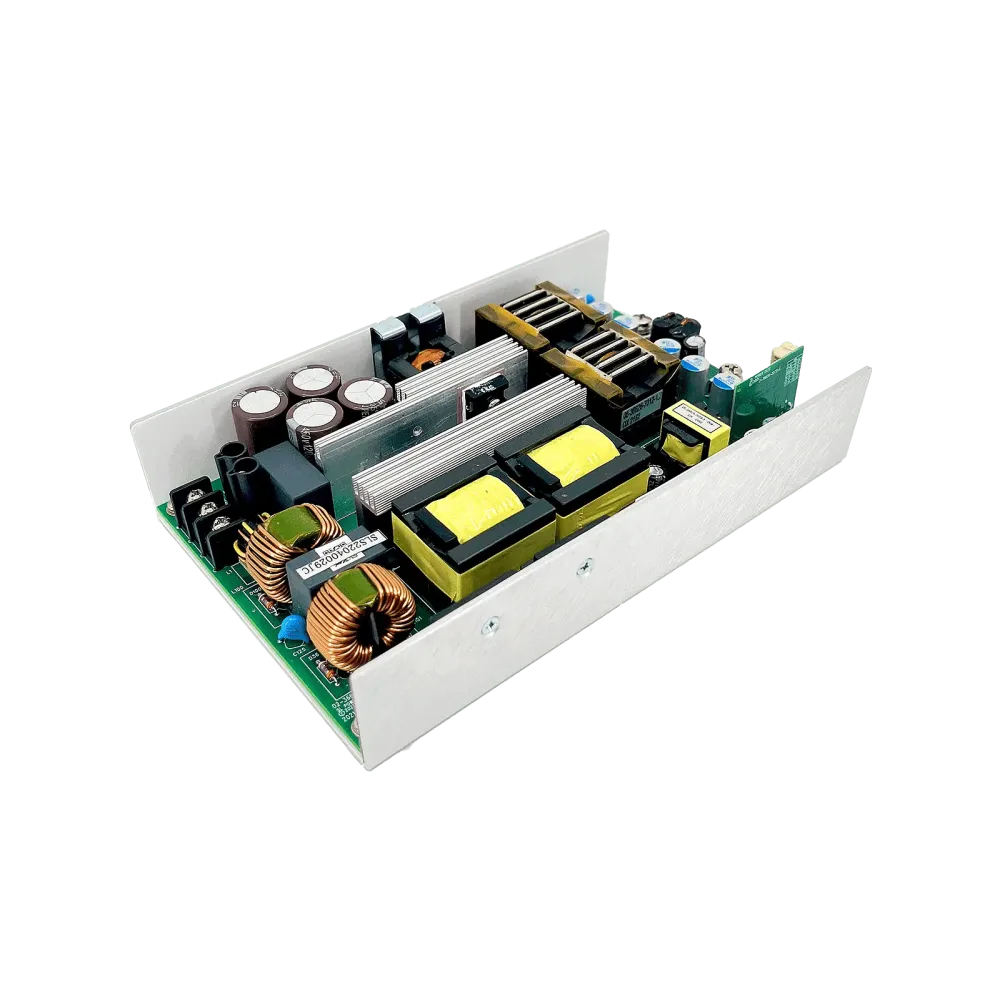

The NGB800 series from SL Power is a powerful family of next generation AC/DC power supplies for medical and industrial applications.
Technical data
- 800Watt output power with airflow
- 650Watt convection-cooled
- UL/CSA/IEC/IEC60601-1, IEC62368-1 approved
- -20°C..+80°C Temperature range
- 5 "x 8" x 1.6" Housing
- Complies with 4th Edition/Heavy Industrial EMC
- <100uA leakage current
- 85V..264Vac Universal input range
- Class I and Class II version available
- Meets Class B emission level
- 7-year electrolytic capacitor service life
- 5000m.a.s.l.
- 3-year guarantee
- Manufacturer SL Power
Product specifications
| Output voltage (VDC) | 24 V |
| Application | ITE/AV, Medical |
| Width | 127 mm |
| Protection class | Class I |
| Manufacturer | SL Power |
| Power | 800 W |
| Length | 203.2 mm |
| Height | 40.64 mm |
Data sheets
