About the product

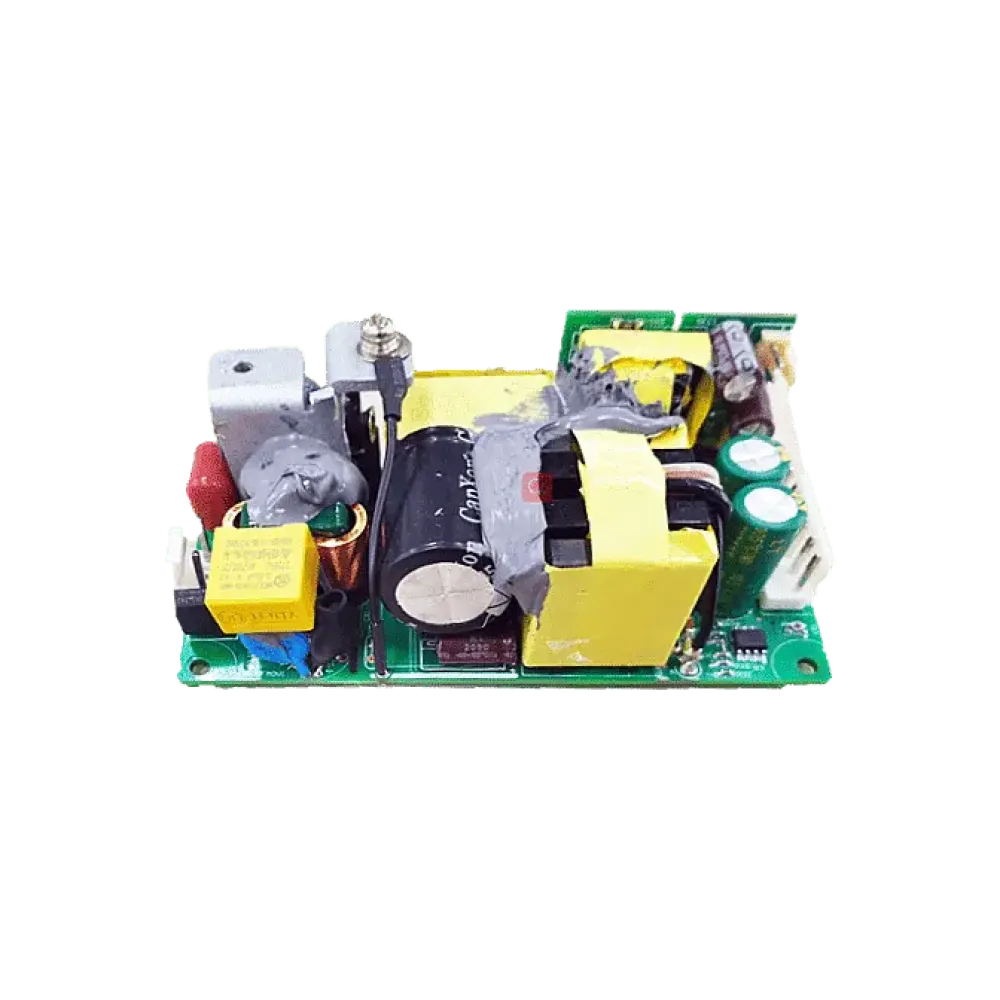

The NGB150 series from SL Power is a powerful family of next generation AC/DC power supplies for medical and industrial applications with an efficiency of more than 90 %.
Technical data
- 150Watt output power
- UL/CSA/IEC/IEC60601-1, IEC62368-1 approval
- -40°C..+85°C Operating temperature range
- +/- 10% output voltage adjustable
- 5Vdc standby output
- 4 "x 2 "x 1.26" Housing
- <100uA leakage current
- 85V..264Vac Input voltage range
- 3-year guarantee
- SL Power Manufacturer
Product specifications
| Height | 32 mm |
| Output voltage (VDC) | 19 V |
| Control signals | Remote ON/OFF |
| Width | 50.8 mm |
| Length | 101.6 mm |
| Standard size | 2 x 4 inches |
| Protection class | Class II |
| Application | ITE/AV, Medical |
| Power | 150 W |
| Manufacturer | SL Power |
