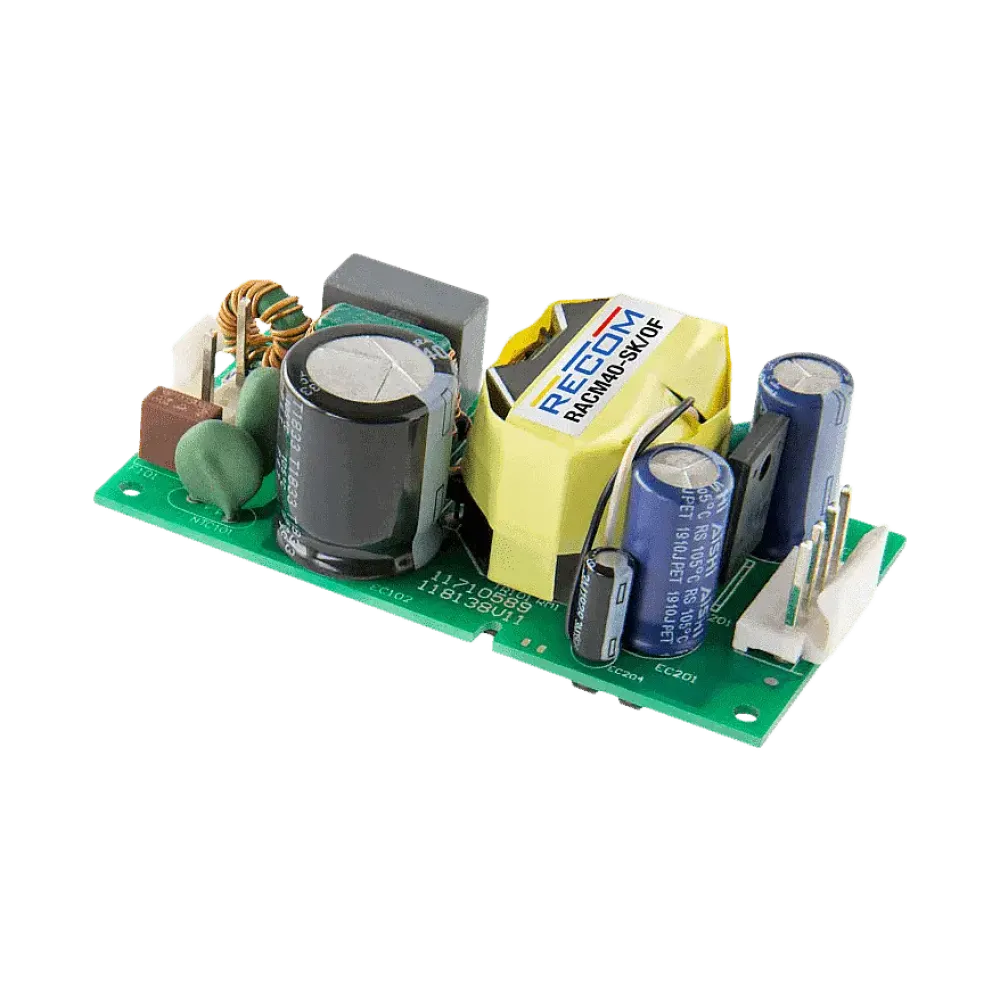

40W Open Frame power supply 24V/1.67A, medical, industrial, household

The ultra-compact, versatile RACM40-K/OF series AC/DC converters for industrial, domestic and medical applications deliver 40 watts of output power at temperatures from -40°C to +65°C with natural air convection and up to +85°C with derating or forced ventilation. With a clear focus on extended thermal performance for systems with limited space, these compact open 1.6 "x3" modules are designed to achieve the highest overall efficiencies across the entire output load range of universal AC inputs. The RACM40-K/OF is certified to ANSI/AAMI/IEC 60601-1 for medical safety and EN 60601-1-2 for medical EMC and offers 4kVac/1 min isolation, 2MOPP and meets the requirements of B and BF. It is additionally certified to IEC/EN 62368-1 (CB report) and IEC61558-1/-2-16 for industrial applications and IEC/EN 60335-1 for household appliances. The robust built-in class B EMC filter offers sufficient scope to enable class II or I PELV installations with earthed output.

Technical data

• 1.6 "x3", open card units
• 40W power from -40°C up to +65°C ambient temperature
• Operating temperature up to +85°C with derating
• 4 kVac/1min reinforced insulation
• 2MOPP medically certified, B and BF compliant
• 5000m (medical/ITE) Operating altitude
• Integrated class B EMC filter
