About the product

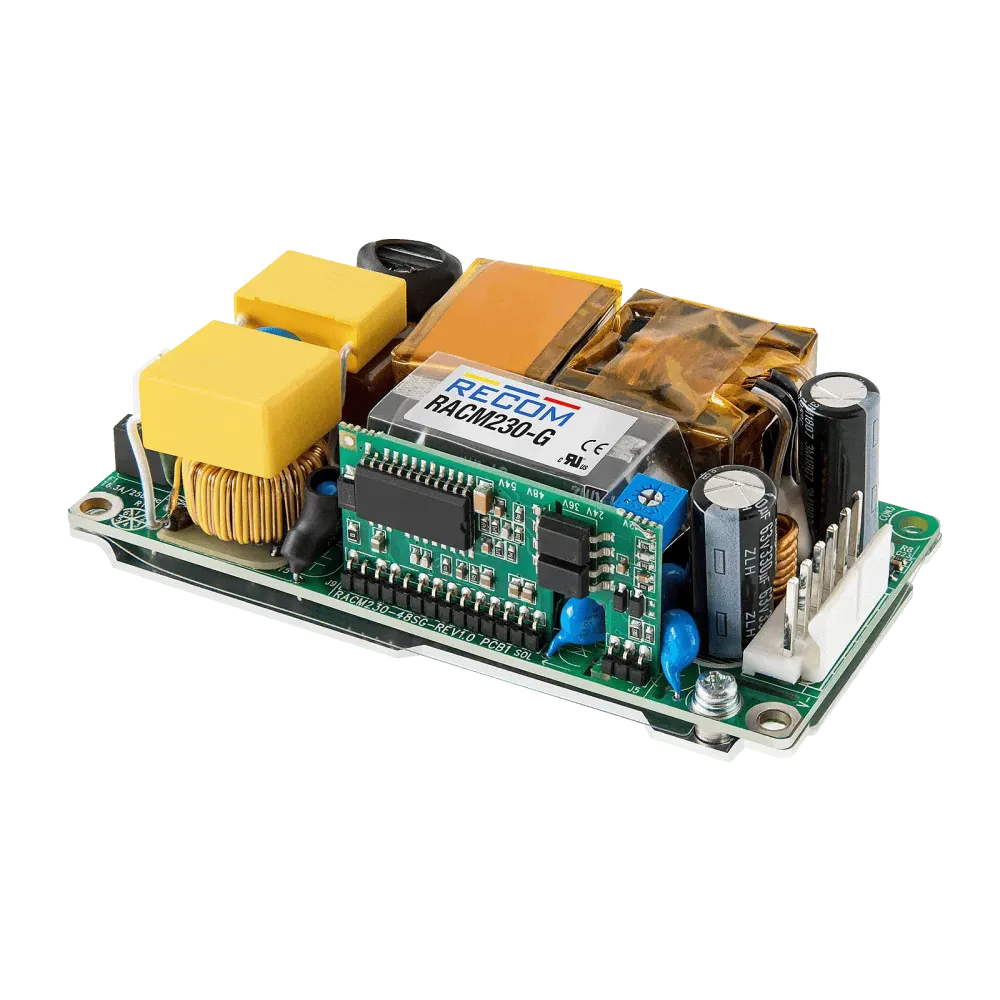

The compact RACM230-G series (4" x 2") from RECOM delivers up to 160W continuous output power without fan cooling and 230W peak power for several seconds; depending on the model with forced ventilation, input voltage and ambient temperature 230W continuously available. The available output voltages are 12V, 24V, 36V, 48V and 54V nominal, with an efficiency of up to 92% and an operating temperature range of -40°C to +80°C. International safety certifications including 2 x MOPP (250VAC) for medical, domestic, industrial and audio/video/ITE for operation up to 5,000m altitude with universal input voltage 80VAC to 264VAC enable standard compliant operation worldwide. Energy consumption in standby mode is less than 500mW. An intelligent fan output is also included as standard.
Technical data
- 160 W base plate cooling, fanless operation
- 230 W peak power or fan operation
- Universal AC input range (80~264Vac)
- Power consumption in standby mode <0,5 W
- Wide operating temperature range (-40°C to +80°C)
- Household, ITE and medical 2MOPP certificate
- Operating altitude up to 5000m
Product specifications
| Height | 32 mm |
| Power | 230 W |
| Width | 50.8 mm |
| Length | 101.6 mm |
| Standard size | 2 x 4 inches |
| Protection class | Class I |
| Application | Household, ITE/AV, Medical |
| Manufacturer | Recom |
| Output voltage (VDC) | 12 V |
| Additional functions | 12VDC auxiliary output |
