About the product

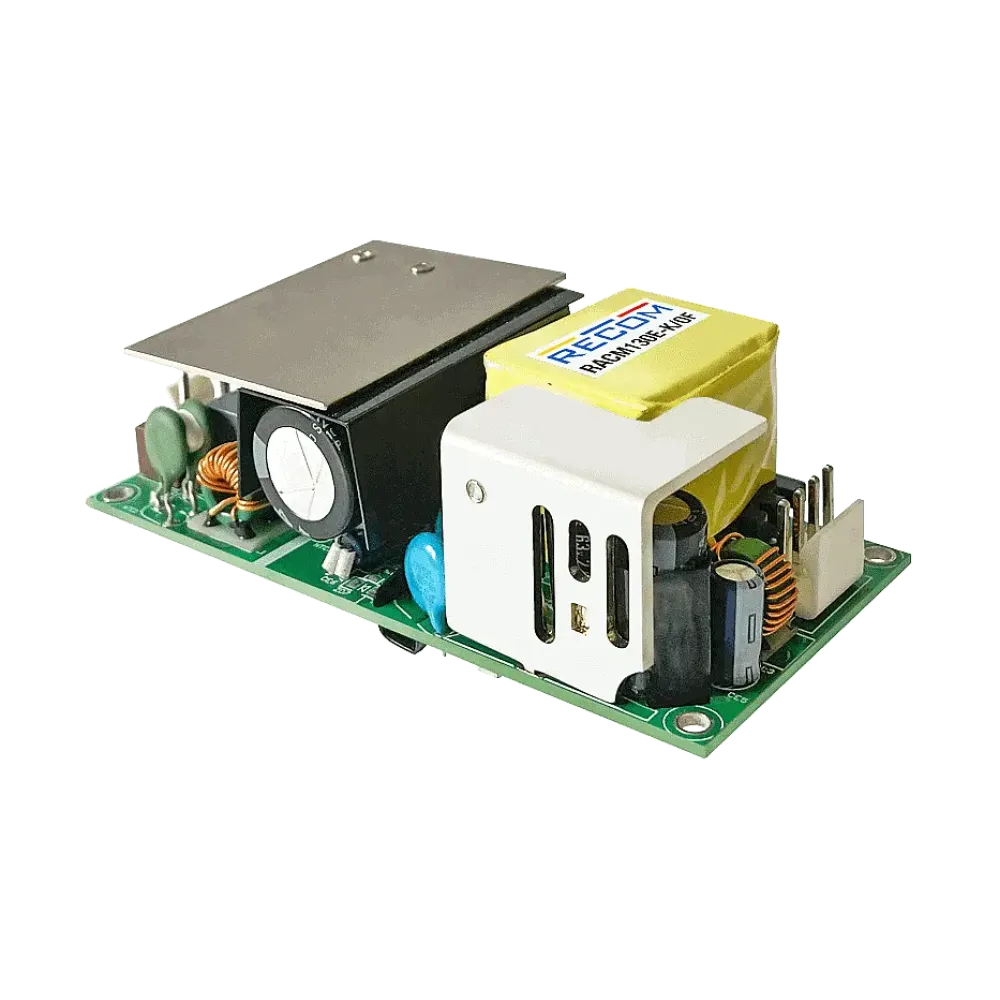

The cost-effective RECOM RACM130E-K series with a footprint of 2 "x4" is now available with a peak output power of 130W from a wide input range of 85-264VAC.
The strictly regulated individual outputs are available for 12V, 15V, 24V, 36V and 48VDC. Safety certifications include 2MOPP/250VAC medical for 'B' or 'BF' applications to IEC/EN/ANSI/AAMI ES 60601-1 as well as IEC/EN 62368-1, IEC/EN 60335-1 and IEC/EN 61558-1 for industrial, test and measurement, IT and domestic applications, all up to 4,000m above sea level. An integrated double input fuse is also included. The EMC limits of EN 55032/35 'Class B' are met with a good margin and the products are suitable for installation in overvoltage class 3 and overvoltage category OVC III environments
Technical data
- 100W continuous power
- 130W Peak Power
- Overvoltage category III
- Medical approval according to 2xMOPP
- Certified up to 4000 meters operating altitude
Product specifications
| Height | 32 mm |
| Power | 130 W |
| Width | 50.8 mm |
| Length | 101.6 mm |
| Standard size | 2 x 4 inches |
| Protection class | Class II |
| Application | Household, ITE/AV, Medical |
| Manufacturer | Recom |
| Output voltage (VDC) | 48 V |
| Additional functions | OVC III |
Data sheets
