Item ID: 45230

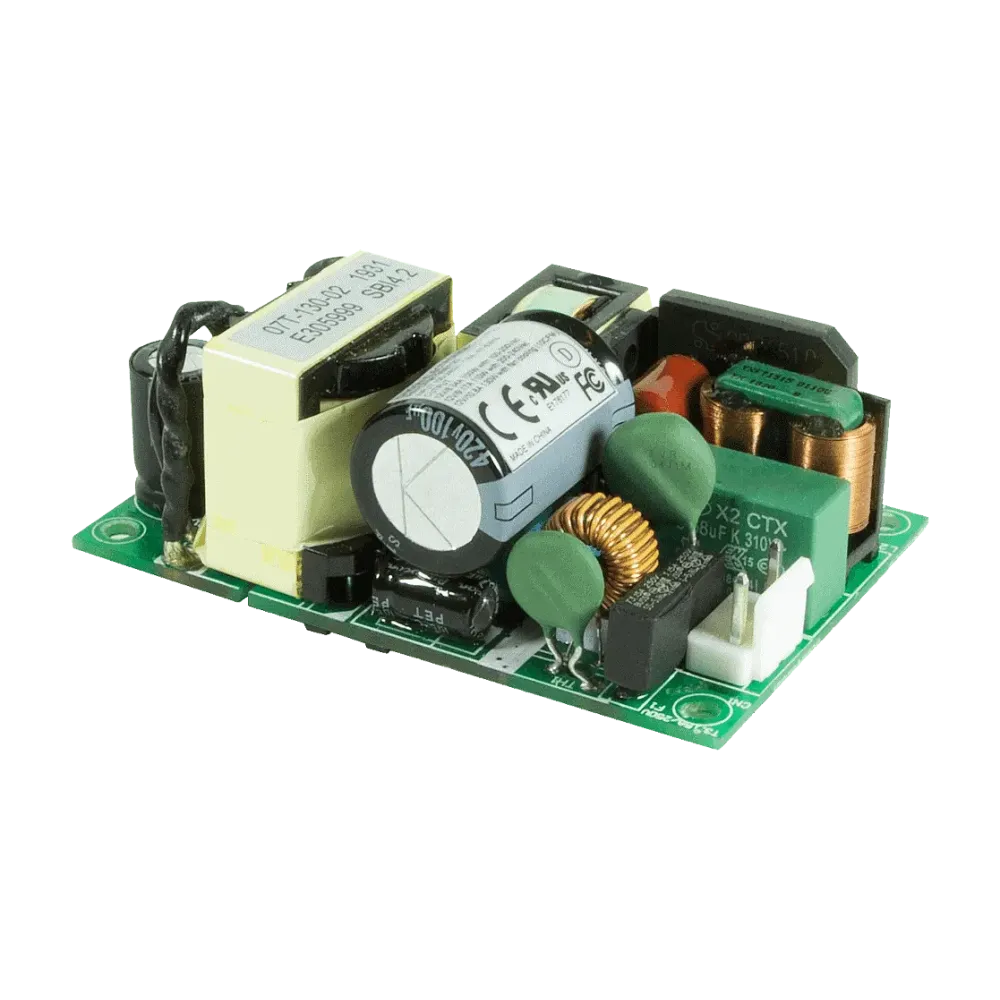

130W medical open frame power supply 18V/7.2A

Delivery at your place between May 21 and Jun 25 2025

About the product

CFM130M180 from Cincon is a 2 MOPP, high power density, open frame AC/DC medical power supply that is both Class I and Class II compatible and provides 130W of power in a 2×3 inch (50.8×76.2×30.5 mm) footprint. It has safety approvals according to UL60601-1/IEC60601-1/EN60601-1 Ed.3.1 and complies with IEC/EN60335-1.

Technical data
  • Input voltage range 80 to 264Vac
  • Active PFC
  • No load power consumption 150mW
  • High efficiency 94%
  • 100 watts with natural convection
  • 130 watts with fan
  • Protective circuit: Permanent short circuit
  • Complies with IEC60601-1, EN60601-1 and ES60601-1, 2 MOPP
  • Complies with IEC/EN60335-1
  • EMI safety complies with Class Ⅰ and Class Ⅱ
  • Application range 5000m

Product specifications

Height 30.5 mm
Manufacturer Cincon
Width 50.8 mm
Application Household, Medical
Power 130 W
Protection class Class I, Class II
Output voltage (VDC) 18 V
Standard size 2 x 3 inches
Length 76.2 mm

Data sheets

Accessories

12Vdc fan 40x40x20mm
12Vdc fan 40x40x20mm
Connector set JST VH series
Connector set JST VH series
