130W medical open frame power supply 19V/6.8A

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

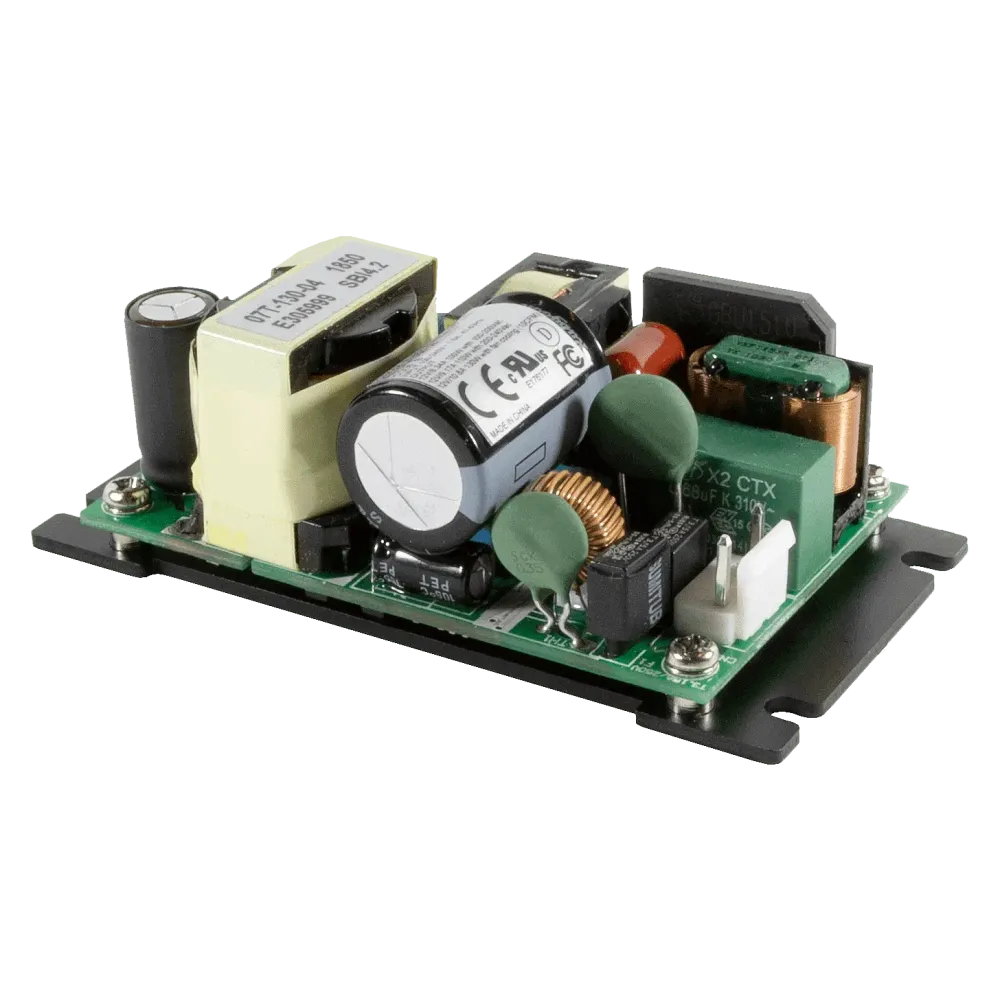

Cincon's CFM130M190-B is a 2 MOPP, high power density, open frame AC/DC medical power supply that is both Class I and Class II compatible and provides 130W of power in a 2×3 inch (50.8×76.2×30.5 mm) footprint. It has safety approvals according to UL60601-1/IEC60601-1/EN60601-1 Ed.3.1 and complies with IEC/EN60335-1. The "-B" version can be thermally connected to the device housing via the base plate to improve derating at high temperatures.

Technical data

Input voltage range 80 to 264Vac
Active PFC
No load power consumption 150mW
High efficiency 94%
100 watts with natural convection
130 watts with fan
Protective circuit: Permanent short circuit
Complies with IEC60601-1, EN60601-1 and ES60601-1, 2 MOPP
Complies with IEC/EN60335-1
EMI safety complies with Class Ⅰ and Class Ⅱ
Application range 5000m

Product specifications

Manufacturer	Cincon
Width	50.8 mm
Application	Household, Medical
Power	130 W
Protection class	Class I, Class II
Output voltage (VDC)	19 V
Length	91.4 mm
Height	33 mm
