About the product

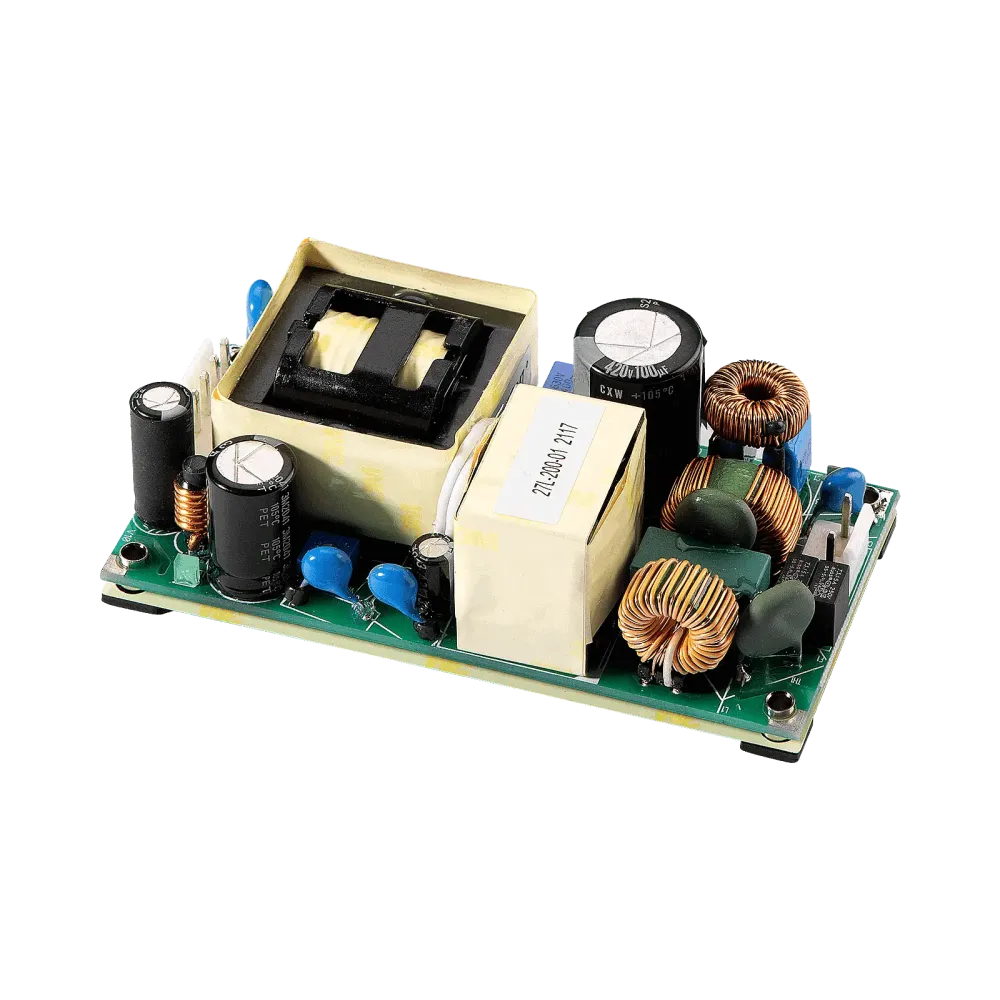

CFM202S560B from Cincon is a high power density ITE AC/DC open frame power supply that is compatible with both Class I and Class II and offers up to 200W of power in a 2×4 inch (50.8×101.6mm) dimension. It has safety approvals according to IEC/UL/EN62368-1 and IEC/EN60335-1.
Version B with baseplate cooling
Technical data
- Universal input range 90.. 264Vac
- High efficiency of up to 94
- Active PFC function
- 2 "x 4" open frame compact size
- 150 watts with natural convection
- 200 Watt fan-cooled
- No load power consumption <150mW
- Continuous short-circuit protection
- Operating altitude 5000m
- Approved safety according to IEC/EN/UL62368-1 and IEC/EN60335-1
- EMI safety complies with Class I and Class II
Product specifications
| Power | 200 W |
| Manufacturer | Cincon |
| Standard size | 2 x 4 inches |
| Length | 101.6 mm |
| Width | 50.8 mm |
| Protection class | Class I, Class II |
| Output voltage (VDC) | 56 V |
| Height | 33.2 mm |
| Application | Budget, ITE/AV |
